20A contact switching capacity
Six contact configurations available
Open-frame and molded-case options available
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: One set normally open
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mounted
6. Mounting type: PCB mounting
7. Package type: Molded plastic
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1.1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Maximum rated switching current (DC): 20
18. Maximum switching voltage (DC): 90
19. Temperature range: -40°C to 85°C
20. Mechanical endurance (cycles): 10,000,000
21. Electrical endurance (units): 200,000
22. Application fields: Indicator/illumination/flashing light control, instrumentation, automatic doors/windows, cold start, central door locks, sun visor control
23. Weight (units: g): Approx. 12
24. Dimensions (units: mm³): 17.5 × 15 × 19.5

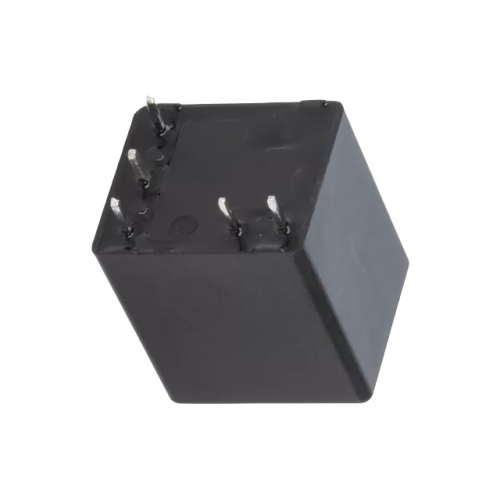

20A Automotive Relay HFKM/012-1HST One Set Normally Open
US$ 7.58 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 20A HFKM/012-1HST automotive relay is engineered to match OEM specifications for most 12V passenger cars, light trucks, and utility vehicles, offering a direct plug-and-play fit that requires no extra modification for installation.
- Built with high-purity copper conductive contacts and a flame-retardant heat-resistant ABS housing, this normally open relay delivers consistent electrical conductivity, resists corrosion, and holds up to harsh under-hood operating conditions reliably.
- This is a brand-new, factory-calibrated 20A automotive relay that undergoes full functional testing prior to distribution, with zero manufacturing defects to guarantee it meets its stated voltage and current ratings immediately upon installation.
- Perfect for controlling high-current automotive systems including fuel pumps, cooling fans, headlights, fog lights, and aftermarket audio setups, this normally open relay prevents circuit overloads and protects sensitive on-board electronic components from unexpected damage.
- Each HFKM/012-1HST 20A automotive relay ships in anti-static, moisture-sealed individual packaging that shields internal components from dust, static discharge, and transit damage to preserve full functionality prior to use.
