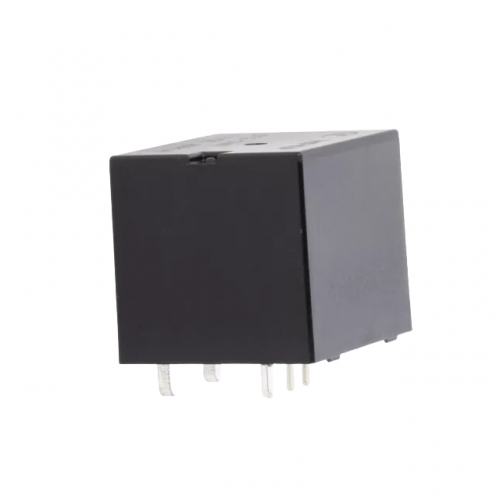

12VDC Automotive Relay HFKP/012-1Z6TS Single-Pole Changeover

45A contact switching capacity
PCB mounting
Two contact configurations: one normally open, one changeover
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: One changeover pair
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mounted
6. Mounting type: PCB mounting
7. Package type: European-style plastic encapsulation
8. Coil power rating: Sensitive type
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Blister Pack
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1.2W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Operating Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation Resistance (Unit: MΩ): 500
18. Maximum Rated Switching Current (DC): 100
19. Maximum Switching Voltage (DC): 75
20. Temperature Range: -40°C to 125°C
21. Mechanical Durability (Unit: Cycles): 10,000,000
电耐久性（单位：次）    100000    触点间隙（单位：mm）    -
产品应用领域    转向灯/危险信号灯/紧急刹车灯等灯光控制， 汽车音响， 汽车空调， 油泵控制， 低温启动， 座椅调整， 后窗除雾器， 防晒器， 螺线管启动开关， 防盗器， 中央门锁， 自动门窗，    产品应用场合    -
重量（单位：g）    约20    体积（单位：mm3）    26.5×22×22.3
