45A contact switching capacity
PCB mounting
Two contact configurations: one normally open, one changeover
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: One changeover pair
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mounted
6. Mounting type: PCB mounting
7. Package type: European-style plastic encapsulation
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Blister Pack
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Operating Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation Resistance (Unit: MΩ): 500
18. Maximum Rated Switching Current (DC): 100
19. Maximum Switching Voltage (DC): 75
20. Temperature Range: -40°C to 125°C
21. Mechanical Durability (Unit: Cycles): 10,000,000
电耐久性（单位：次） 100000 触点间隙（单位：mm） -
产品应用领域 转向灯/危险信号灯/紧急刹车灯等灯光控制， 汽车音响， 汽车空调， 油泵控制， 低温启动， 座椅调整， 后窗除雾器， 防晒器， 螺线管启动开关， 防盗器， 中央门锁， 自动门窗， 产品应用场合 -
重量（单位：g） 约20 体积（单位：mm3） 26.5×22×22.3

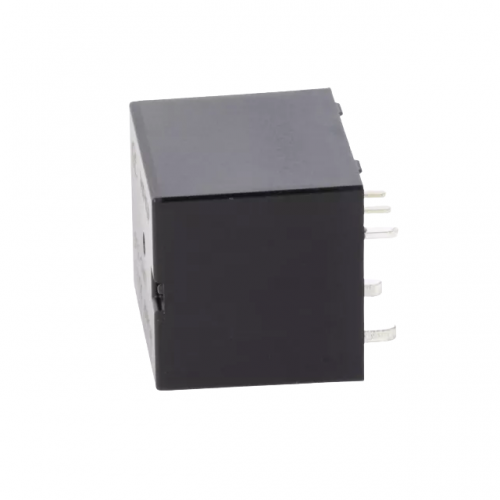

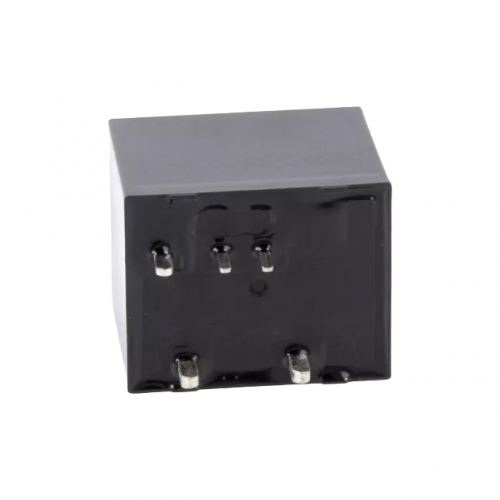

75DC Automotive Relay HFKP/012-1Z6T Single-Pole Changeover
US$ 6.68 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 75DC HFKP/012-1Z6T single-pole changeover automotive relay is compatible with all 12V vehicle electrical systems, serving as a direct drop-in replacement for original equipment relays of the same specification.
- Constructed with premium copper conductive terminals and a heat-resistant, impact-proof ABS housing, this relay offers superior conductivity, corrosion resistance, and long service life even in harsh under-hood conditions.
- This is a brand new, factory-calibrated automotive relay that undergoes strict load testing prior to leaving the production line to guarantee consistent, reliable performance with zero defects.
- Perfect for controlling high-current vehicle components including headlights, fuel pumps, cooling fans, starter circuits, and aftermarket accessory upgrades, with its 75A load capacity supporting even power-hungry electrical parts.
- Each relay ships in an individual anti-static sealed pouch to protect internal electrical components from static damage, dust, and moisture during transit, arriving ready for immediate installation out of the package.
