45A contact switching capacity
PCB mounting
Two contact configurations: one normally open, one changeover
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: One normally open
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mounted
6. Mounting type: PCB mounting
7. Package Type: European Plastic-Encapsulated
8. Coil Power Rating: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Blister Sheet
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 1.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation Resistance (Unit: MΩ): 500
18. Maximum Rated Switching Current (DC): 100
19. Maximum Switching Voltage (DC): 75
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000
23. Application fields: Turn signal/ hazard warning lights/emergency brake lights, automotive audio systems, automotive air conditioning, fuel pump control, cold start, seat adjustment, rear window defogger, sun visor, solenoid starter switch, anti-theft device, central door lock, automatic windows
24. Weight (Unit: g): Approx. 20
25. Volume (Unit: mm³): 26.5 × 22 × 22.3

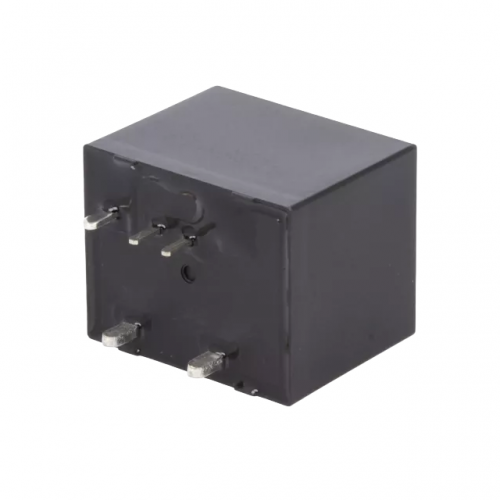

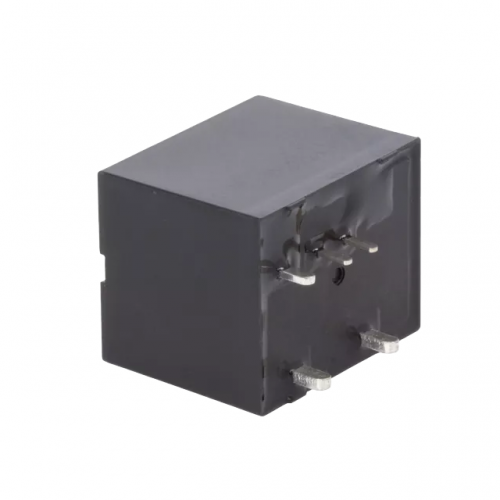

45A Automotive Relay HFKP/012-1H4T Monostable
US$ 7.68 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 45A monostable HFKP/012-1H4T automotive relay fits most 12V passenger cars, light trucks, and modified off-road vehicles to support stable electrical system operation.
- Forged with high-purity copper contacts and flame-retardant ABS housing, this automotive relay boasts excellent conductivity, high temperature resistance, and long service life even in harsh driving environments.
- Sold as a brand new, factory-calibrated component, this relay delivers consistent performance matching or exceeding OEM specifications for 45A electrical circuit control.
- Perfect for controlling high-power automotive systems including headlights, fog lights, cooling fans, fuel pumps, and upgraded audio setups to prevent circuit overload and premature component failure.
- Each HFKP/012-1H4T automotive relay comes in anti-static sealed packaging to prevent static damage during transport and storage, so you receive a fully functional part ready for immediate installation.
