Maximum continuous current: 40A
Maximum make current: 200A
Ambient temperature up to 105°C
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: One set normally open
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mounted
6. Mounting type: PCB mounting
7. Package type: Solder mask type (reflow soldering)
8. Coil power rating: Standard type
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tape and Reel
12. Load Voltage: 13.5
13. Rated Coil Power: Approx. 0.82W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum Rated Switching Current (DC): 40
19. Maximum Switching Voltage (DC): 16
20. Temperature Range: -40°C to 125°C
21. Mechanical Endurance (Unit: Cycles): 2,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: ABS control, fan control, engine control, fuel pump control, glow plugs, electric power steering
24. Weight (units: g): Approx. 11
25. Volume (units: mm³): 18.3 × 16 × 15.9

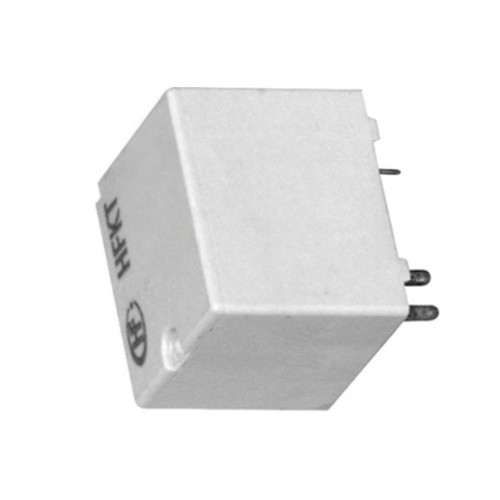

40A Normally Open Automotive Relay Set HFKT-T/12-HTC
US$ 8.18 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 40A normally open HFKT-T/12-HTC automotive relay set is universally compatible with most 12V passenger cars, pickups, SUVs, and light commercial vehicles as a direct factory relay replacement.
- Built with high-temperature resistant pure copper contacts and flame-retardant heavy-duty ABS housing, this relay set offers stable conductivity and exceptional durability even in harsh under-hood environments.
- Every relay in this set is brand new, fully factory tested for consistent 40A load performance, and fully compliant with original equipment manufacturer quality standards.
- This normally open relay set is perfect for switching high-current automotive components including cooling fans, fuel pumps, fog light kits, electric horns, and aftermarket accessory power systems.
- The relay set ships in a static-proof, moisture-sealed protective package to prevent component damage during transit and preserve function during long-term storage before installation.
