Maximum continuous current: 40A
Maximum make current: 200A
Ambient temperature up to 105°C
1. Coil voltage type: DC
2. Coil operating voltage: 10V
3. Contact configuration: One set normally open
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mounted
6. Mounting type: PCB mounting
7. Package type: Solder mask type (reflow soldering)
8. Coil power rating: Standard type
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tape and Reel
12. Load Voltage: 13.5
13. Rated Coil Power: Approx. 0.83W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum Rated Switching Current (DC): 40
19. Maximum Switching Voltage (DC): 16
20. Temperature Range: -40°C to 125°C
21. Mechanical Endurance (Unit: Cycles): 2,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: ABS control, fan control, engine control, fuel pump control, glow plugs, electric power steering
24. Weight (units: g): Approx. 11
25. Volume (units: mm³): 18.3 × 16 × 15.9

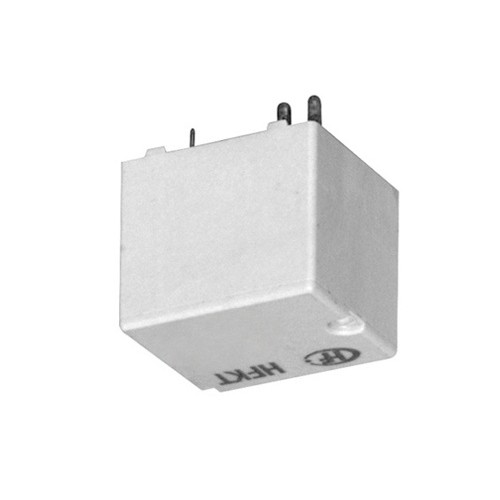

0.83W Normally Open Automotive Relay Set HFKT-T/10-HTC
US$ 8.18 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.83W normally open HFKT-T/10-HTC automotive relay set fits most 10V passenger cars, light trucks, and off-road vehicles, matching OEM fitment specs for direct, modification-free installation.
- Built with high-temperature resistant copper core contacts and flame-retardant heavy-duty plastic housing, this automotive relay set delivers consistent performance even in extreme under-hood heat and high-vibration driving conditions.
- Every HFKT-T/10-HTC relay in this set is brand new and factory tested to meet or exceed original equipment performance standards, with no defects, wear, or prior use before shipment.
- Ideal for powering automotive lighting upgrades, fog light kits, car audio systems, cooling fans, and other custom electrical accessories, this normally open 0.83W relay set prevents circuit overload and extends the service life of connected components.
- This HFKT-T/10-HTC automotive relay set ships in a static-resistant sealed bag to prevent transit damage, with clearly printed specification labels for easy inventory organization and quick installation reference.
