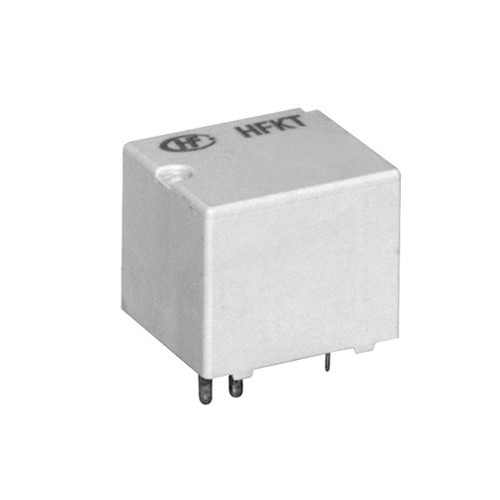

40A Normally Open Automotive Relay Set HFKT-T/10-HT

Maximum continuous current: 40A
Maximum make current: 200A
Ambient temperature up to 105°C
1. Coil voltage type: DC
2. Coil operating voltage: 10V
3. Contact Form: One Set Normally Open
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type (Reflow Soldering)
8. Coil Power: Standard Type
9. Coil Characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging type: Tube packaging
12. Load voltage: 13.5
13. Rated coil power: Approx. 0.83W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (Unit: ms): ≤10
16. Release time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum Rated Switching Current (DC): 40
19. Maximum Switching Voltage (DC): 16
20. Temperature Range: -40°C to 125°C
21. Mechanical Endurance (Unit: Cycles): 2,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: ABS control, fan control, engine control, fuel pump control, glow plugs, electric power steering
24. Weight (units: g): Approx. 11
25. Volume (units: mm³): 18.3 × 16 × 15.9
