Compact structure, lightweight
High current capacity (Current rating: 35A/10min. 25A/1h)
Reflow solder type available
1. Coil voltage type: DC
2. Coil operating voltage: 9V
3. Contact configuration: Single-pole changeover
4. Number of contacts: Single contact
5. Lead Form: PCB Type
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Tape and Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

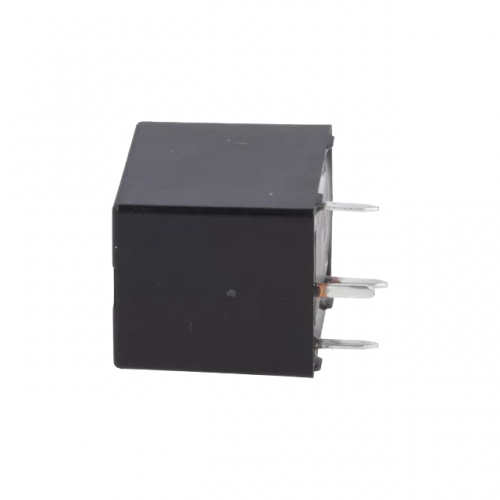

0.6W Automotive Relay HFKW/009-1ZW Single-Contact
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.6W HFKW/009-1ZW single-contact automotive relay meets original equipment specifications for direct plug-and-play fit with most domestic and import passenger cars, light trucks, and SUVs built after 2000.
- Built with high-purity copper contact points and a flame-retardant reinforced plastic housing, this relay delivers stable 0.6W power output and resists corrosion, vibration, and extreme under-hood temperatures for consistent long-term performance.
- This HFKW/009-1ZW automotive relay is brand new, factory-tested for full functionality, and completely free of defects, scuffs, or pre-existing damage before it leaves the warehouse.
- Perfect for controlling vehicle lighting systems, cooling fans, fuel pumps, power windows, and other low-current automotive electrical circuits, this single-contact relay prevents circuit overloads and extends the service life of connected electrical components.
- Each 0.6W single-contact automotive relay is shipped in static-resistant sealed packaging to protect sensitive internal electrical components from static discharge, moisture, and physical damage during transportation.
