Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 6V
3. Contact configuration: One changeover contact
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Solder mask type (reflow solderable)
8. Coil power rating: Standard type
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tape and Reel
12. Load Voltage: 12
13. Rated Coil Power: Approx. 0.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum Rated Switching Current (DC): 35
19. Maximum Switching Voltage (DC): 16
20. Temperature Range: -40°C to 85°C
21. Mechanical Endurance (Unit: Cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For further details, please refer to the product catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

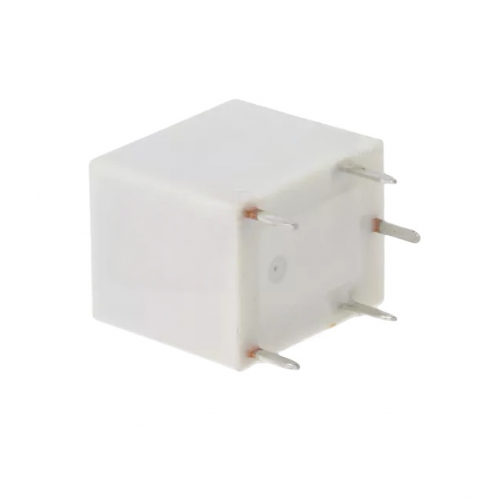

6VDC Automotive Relay HFKW/006-1ZW-LC Single-Pole Changeover
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 6VDC HFKW/006-1ZW-LC single-pole changeover automotive relay is fully compatible with most domestic and import passenger vehicles, light trucks, and common aftermarket automotive electrical modification setups.
- Built with high-purity copper contact pins, a flame-retardant heat-resistant housing, and premium internal copper coils, this relay delivers consistent conductivity and long-term resistance to vibration, moisture, and extreme under-hood temperature shifts.
- This brand-new, factory-tested HFKW/006-1ZW-LC relay is free of manufacturing defects, corrosion, or contact wear, matching the reliable performance of original equipment factory relays for direct drop-in replacement.
- Ideal for controlling automotive lighting systems, electric cooling fans, fuel pumps, power window circuits, and vehicle alarm systems, this single-pole changeover relay switches between two circuit paths seamlessly for stable, customized electrical operation.
- Each 6VDC HFKW/006-1ZW-LC relay ships in static-protective, impact-resistant sealed packaging to prevent transit damage and preserve full electrical integrity before your planned installation.
