Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 6
3. Contact configuration: One changeover contact
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Solder mask type (reflow solderable)
8. Coil power rating: Standard type
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging: Carton & Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 0.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For more details, please refer to the catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

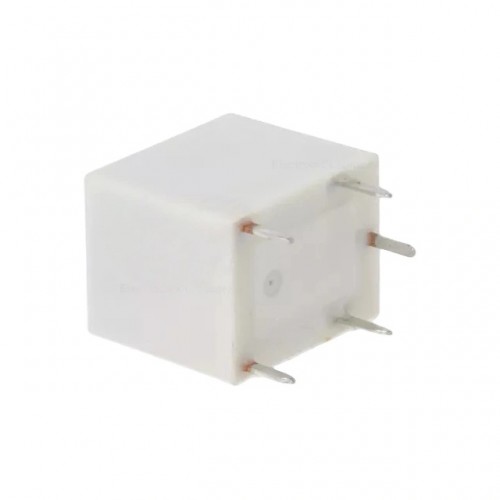

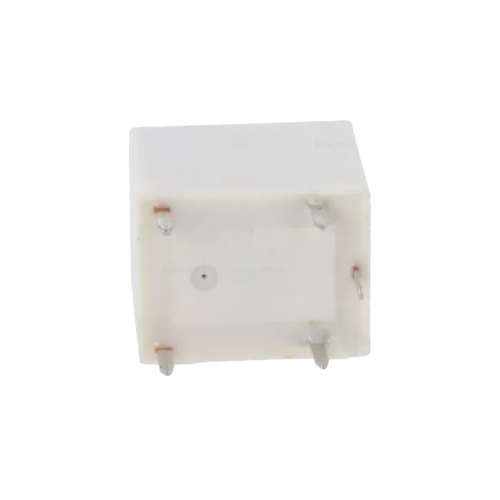

16VDC Automotive Relay HFKW/006-1ZW-L Single-Pole Changeover
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 16VDC HFKW/006-1ZW-L single-pole changeover relay fits most passenger vehicles, light trucks, and custom automotive electrical modification projects for hassle-free, direct-fit installation.
- Built with corrosion-resistant copper alloy contacts and a flame-retardant hard plastic housing, this automotive relay withstands harsh under-hood temperatures and vibration for long-lasting, reliable performance.
- This is a brand-new, factory-calibrated 16VDC automotive relay that meets strict OEM performance standards, with zero pre-existing wear, defects, or functional faults right out of the box.
- Perfect for controlling vehicle lighting circuits, cooling fans, starter systems, and aftermarket audio power supplies, this single-pole changeover relay safely switches electrical loads to prevent overload and component damage.
- Each HFKW/006-1ZW-L relay ships in an individual static-protective sealed bag to shield the unit from shipping damage and electrostatic discharge, so it arrives ready for immediate installation.
