Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 6
3. Contact configuration: One changeover contact
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Plastic-encapsulated
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging: Tape-and-reel packaging
12. Load voltage: 12
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For more details, please refer to the catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

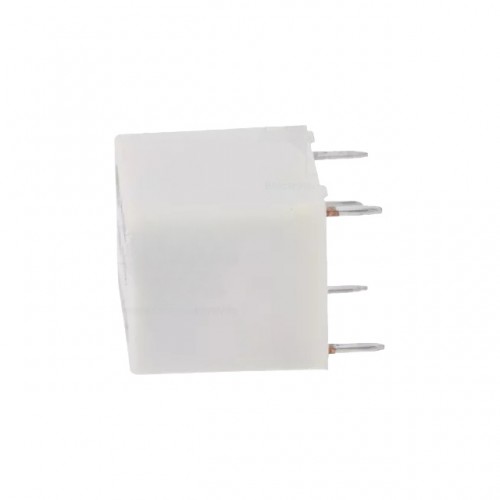

6VDC Automotive Relay HFKW/006-1ZW Standard Power
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 6VDC HFKW/006-1ZW standard power relay is universally compatible with most 6V automotive and light truck electrical systems, making it a perfect direct replacement for factory or aftermarket failed relays of the same spec.
- Built with premium copper contact points and a heat, vibration, and corrosion-resistant heavy-duty plastic housing, this relay delivers reliable, consistent performance even under harsh under-hood operating conditions.
- This is a brand new, factory-calibrated and performance-tested relay with zero prior use, free of cosmetic or functional defects for guaranteed out-of-the-box functionality.
- Perfect for controlling and protecting common automotive electrical components including fuel pumps, cooling fans, headlights, fog lights, and audio upgrade systems to avoid overcurrent damage and maintain stable power delivery.
- Each relay ships in a sealed anti-static, moisture-proof protective bag to eliminate transit damage from static discharge, impacts, or moisture exposure, so it arrives in ready-to-install condition.
