Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 6V
3. Contact Form: One Set Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Tape and reel
12. Load voltage: 12
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For more details, please refer to the catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

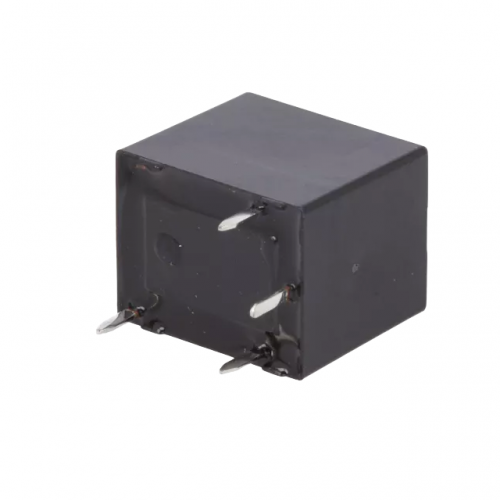

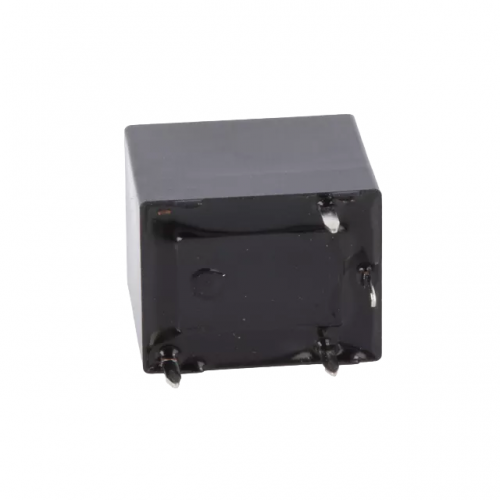

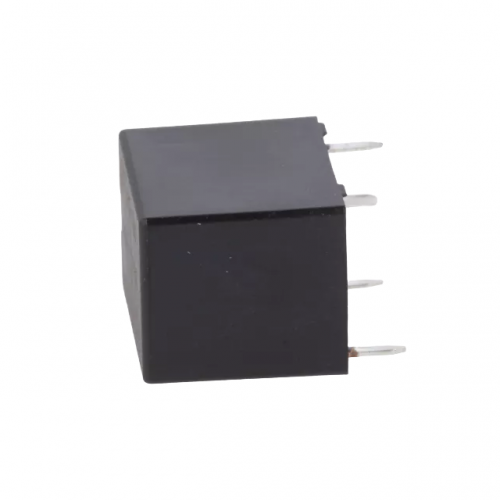

0.6W Automotive Relay HFKW/006-1HW-C Single-Pole Normally Open (SPNO)
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.6W HFKW/006-1HW-C single-pole normally open automotive relay is designed to be compatible with most passenger vehicles, light trucks, and 12V automotive electrical modification systems that match its pin configuration and power rating.
- Built with high-purity conductive copper contacts and a heat-resistant, flame-retardant engineering plastic housing, this relay resists corrosion, vibration, and extreme under-hood temperatures for long-lasting, reliable performance.
- This HFKW/006-1HW-C automotive relay is 100% brand new and factory performance tested, free of any defects, wear, or prior use to meet or exceed original OEM component standards.
- This low-power SPNO automotive relay is perfect for controlling auxiliary lighting, electric horns, cooling fans, fuel pumps, and other 12V low-current automotive accessories that require consistent on-off switching.
- Each individual relay is shipped in a static-sealed anti-electrostatic bag to prevent damage during transit, with clear printed part labeling for quick identification and easy inventory management.
