Compact size
Dual normally open contacts
Standard terminal positions
Reflow solderable versions available
Plastic-encapsulated and solder mask types available
1. Coil voltage type: DC
2. Coil operating voltage: 6
3. Contact configuration: Dual NO
4. Number of contacts: Single contact
5. Lead type: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Solder mask type (reflow solder type)
8. Coil power rating: Standard type
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tape and Reel
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the catalog)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

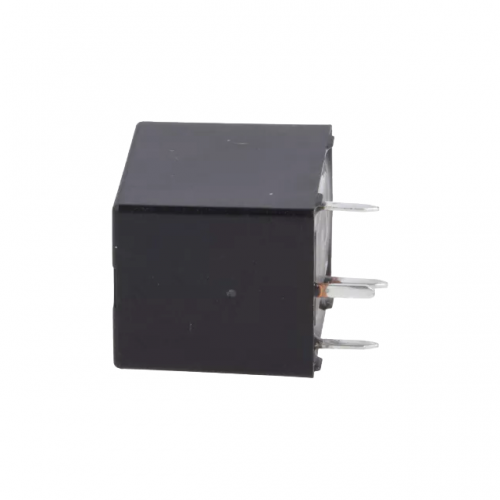

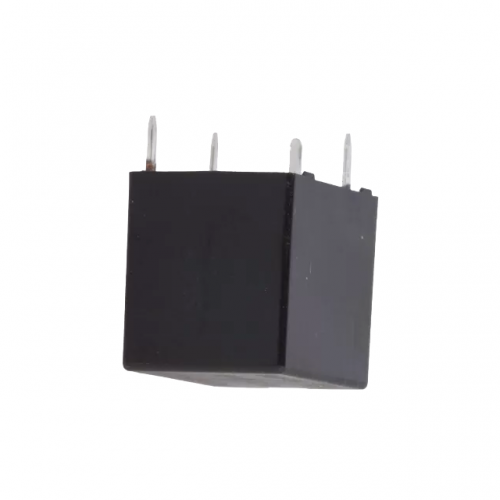

1W Automotive Relay HFKW/006-1HW-C Dual Normally Open Single Contact
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 1W HFKW/006-1HW-C dual normally open single contact automotive relay adheres to strict OEM dimensional and performance specs, serving as a direct drop-in replacement for matching factory relays across most passenger cars, light trucks, and utility vehicles.
- Built with high-conductivity copper alloy contacts, a heat-resistant thermoplastic housing, and premium internal wiring, this relay resists corrosion, overheating, and voltage fluctuations to deliver consistent performance under harsh under-hood conditions.
- This brand new, factory-fresh HFKW/006-1HW-C automotive relay undergoes full functional and load testing prior to distribution, ensuring zero defects and reliable operation right out of the package.
- Perfect for controlling automotive lighting circuits, fuel pumps, cooling fans, ignition systems, and aftermarket power accessories, this dual normally open single contact relay provides stable, low-draw power switching for all standard 12V automotive electrical systems.
- Each individual relay ships in an anti-static, moisture-sealed protective bag, preventing static discharge damage and environmental contamination during transit and pre-installation storage.
