Compact size
Dual normally open contacts
Standard terminal positions
Reflow solderable versions available
Plastic-encapsulated and solder mask types available
1. Coil voltage type: DC
2. Coil operating voltage: 9
3. Contact Form: Dual Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Paper Box & Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the catalog)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

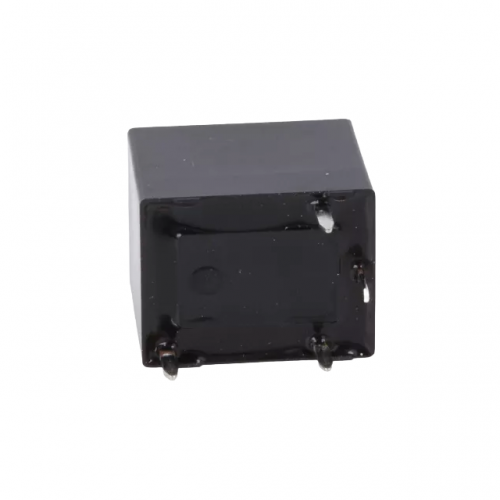

9VDC Automotive Relay HFKW/009-SHW Dual Normally Open Single Contact
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 9VDC HFKW/009-SHW dual normally open single contact relay is compatible with most passenger vehicles, light commercial trucks, and common aftermarket automotive electrical retrofit projects.
- Built with high-purity copper contact points and a flame-retardant impact-resistant housing, this automotive relay offers consistent conductivity and resists corrosion, overheating, and road vibration for extended service life.
- This is a brand new, factory-calibrated 9VDC automotive relay that meets strict OEM performance standards, with no signs of wear, defects, or prior use of any kind.
- Designed to control automotive lighting systems, cooling fans, fuel pumps, and aftermarket audio power supplies, this dual normally open relay safely isolates low-voltage control circuits from high-voltage load circuits to prevent electrical damage.
- Each individual relay comes packaged in a static-resistant sealed bag, protecting its delicate internal components from moisture, dust, and electrostatic damage during transit and long-term storage.
