Compact size
Dual normally open contacts
Standard terminal positions
Reflow solder type available
Plastic-encapsulated and solder mask types available
1. Coil voltage type: DC
2. Coil operating voltage: 10
3. Contact Form: Dual Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Molded
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Carton & Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the catalog)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

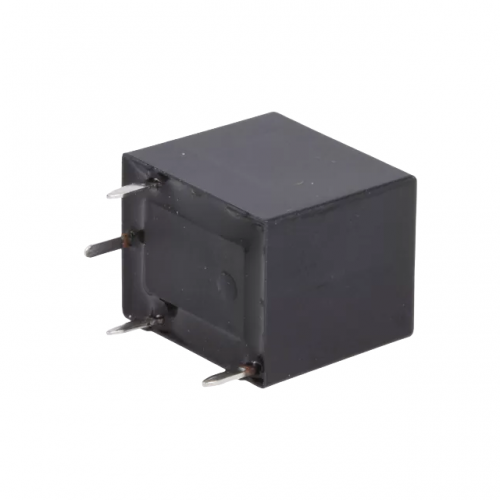

1W Automotive Relay HFKW/010-SHW Dual Normally Open Standard Power
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 1W HFKW/010-SHW dual normally open automotive relay is compatible with most 12V passenger cars, light trucks, and trailer electrical systems, supporting direct plug-and-play replacement for matching original equipment relay specifications.
- Built with high-conductivity copper core contacts and heat-resistant flame-retardant housing, this standard power relay delivers consistent performance and extended service life even in hot, vibration-prone under-hood environments.
- This brand new, factory-calibrated automotive relay has zero prior use and passes strict conductivity and load tests to ensure no manufacturing defects and reliable operation out of the box.
- Perfect for powering vehicle headlights, fog lights, cooling fans, upgraded audio systems, and other high-current accessories, this dual normally open relay prevents circuit overload and protects sensitive on-board electrical components.
- Each relay ships in individual anti-static sealed packaging to avoid damage during transit and storage, with clear part labeling for quick identification and hassle-free inventory tracking.
