Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12
3. Contact Form: One set of normally open
4. Number of Contacts: Single contact
5. Lead Form: PCB Type
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Tape and Reel
12. Load Voltage: 12V
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

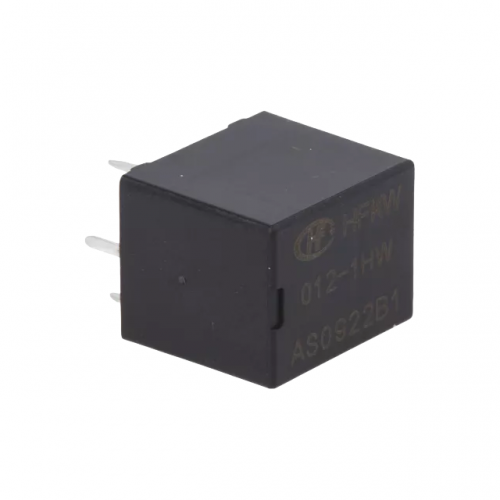

35DC Automotive Relay HFKW/012-1HW-C Single-Pole Normally Open (SPNO)
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 35DC HFKW/012-1HW-C SPNO automotive relay is built to match OEM part specifications for wide compatibility with most passenger cars, light trucks, and commercial utility vehicles, supporting plug-and-play installation without custom wiring modifications.
- Crafted with high-conductivity pure copper contacts and a heat-resistant, flame-retardant hard plastic housing, this single-pole normally open relay resists corrosion, overheating, and wear for long-lasting performance under harsh under-hood conditions.
- This 35DC automotive relay is a brand-new, factory-inspected unit with zero prior use or defects, fully tested for consistent conductivity and circuit response to deliver reliable operation immediately after installation.
- Perfect for controlling vehicle lighting circuits, cooling fans, fuel pumps, starter systems, and aftermarket power accessories, this SPNO relay safely separates low-voltage control circuits from high-current load circuits to prevent damage to sensitive vehicle electronics.
- Each HFKW/012-1HW-C relay is shipped in static-resistant, shock-absorbent protective packaging that prevents transit damage, with clearly printed part number labeling for easy inventory sorting and quick compatibility confirmation before use.
