Compact structure, lightweight
High current capacity (Current rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 10V
3. Contact configuration: One set changeover
4. Number of contacts: Single contact
5. Lead Form: PCB Type
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type (Reflow Solderable)
8. Coil Power: Standard Type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Paper Box & Tube
12. Load Voltage: 12V
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

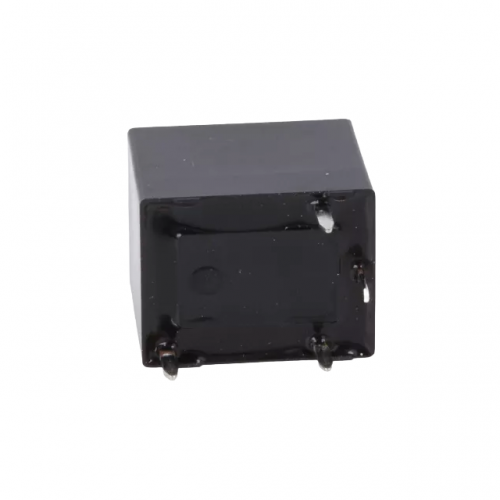

10VDC Automotive Relay HFKW/010-1ZW-L Monostable Single-Group Switching
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 10VDC HFKW/010-1ZW-L monostable automotive relay is compatible with most 12V passenger cars, light trucks, and universal automotive electronic retrofit kits that require single-group switching functionality.
- Built with high-conductivity copper contacts and a flame-retardant high-impact plastic housing, this relay delivers reliable low-loss switching and durable performance even in hot, vibration-prone under-hood environments.
- This brand new, factory-tested HFKW/010-1ZW-L relay meets or exceeds original OEM performance standards for 10VDC monostable single-group switching automotive applications.
- This relay is perfect for controlling automotive auxiliary lighting, cooling fans, fuel pumps, audio power supplies, and other aftermarket electrical components that require consistent, accurate on/off activation.
- Each relay is shipped in an anti-static protective pouch to prevent electrostatic damage during transit and storage, so you receive a fully functional part ready for immediate out-of-the-box installation.
