Compact structure, lightweight
High current capacity (Current rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 10
3. Contact configuration: One changeover contact
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Plastic-encapsulated
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging: Tape-and-reel packaging
12. Load voltage: 12
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

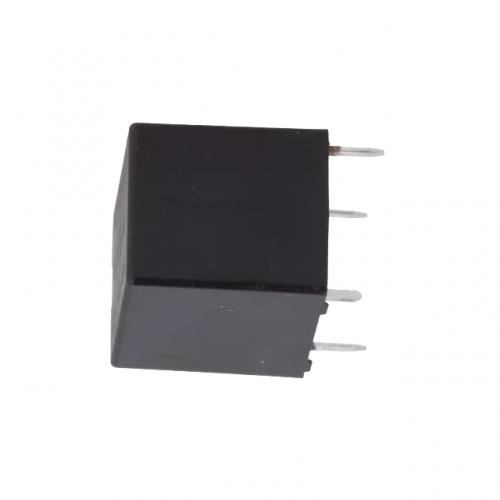

0.6W Automotive Relay HFKW/010-1ZW-C Standard Power Single-Pole Changeover
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- Designed as a direct drop-in replacement for HFKW/010-1ZW-C model relays, this unit is compatible with most 12V passenger vehicles, light trucks, and commercial heavy-duty truck electrical systems with no wiring modifications needed.
- Built with high-conductivity copper alloy contacts and a flame-retardant high-impact plastic housing, this 0.6W relay resists corrosion, vibration, and under-hood heat for reliable long-term performance.
- This brand new, factory-calibrated automotive relay meets strict OEM performance standards, is fully tested for proper function prior to shipment, and is free of any manufacturing defects.
- This single-pole changeover standard power relay is perfect for switching headlights, fog lights, fuel pumps, interior electronics, and auxiliary truck accessories to maintain consistent, safe power distribution.
- Each relay is shipped in anti-static, shock-absorbent packaging to prevent damage during transit, with a clearly printed part number label for quick identification and inventory tracking.
