Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 10V
3. Contact Form: Single-Pole Changeover
4. Number of Contacts: Single Contact
5. Lead Form: PCB Type
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Carton & Tube
12. Load Voltage: 12V
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

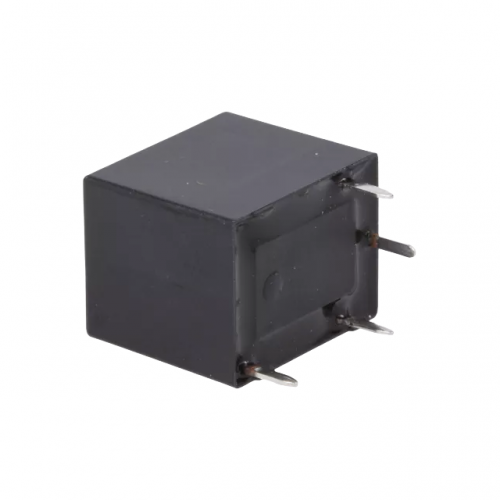

35DC Automotive Relay HFKW/010-1ZW Standard Power Single-Contac
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 35DC HFKW/010-1ZW automotive relay is precision-matched to original equipment specifications for most passenger cars, light trucks, and commercial utility vehicles, offering a seamless plug-and-play fit with no custom modifications required.
- Built with high-purity copper single contact points and a heat-resistant, flame-retardant hard plastic housing, this relay delivers consistent electrical conductivity and resists corrosion, vibration, and under-hood temperature swings for extended service life.
- This brand-new, factory-calibrated automotive relay undergoes strict performance and durability testing before leaving the production line, with zero prior use or wear to guarantee reliable, out-of-the-box operation.
- Perfect for powering and protecting fuel pumps, headlights, cooling fans, ignition systems, and other critical automotive electrical circuits, this standard power relay prevents overloads and maintains steady power flow to vital vehicle components.
- Each individual 35DC HFKW/010-1ZW relay ships in a static-resistant protective bag to avoid electrical damage during transit and storage, with clear part labeling for fast identification during inventory checks and installations.
