Compact structure, lightweight
High current capacity (Current rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 10V
3. Contact configuration: One set normally open
4. Number of contacts: Single contact
5. Lead Form: PCB Type
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Tape and Reel
12. Load Voltage: 12V
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

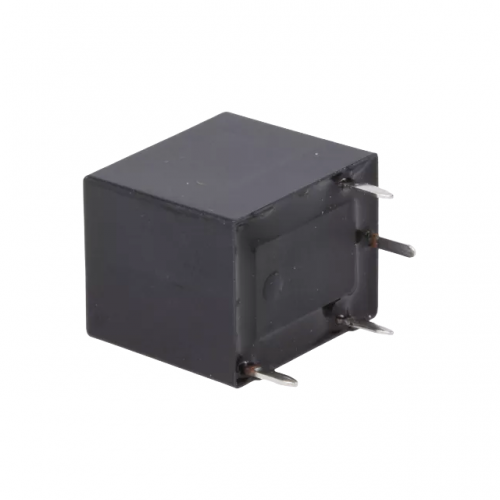

35DC Automotive Relay HFKW/010-1HW-C One Set Normally Open
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 35DC HFKW/010-1HW-C automotive relay is designed to match OEM specifications for a wide range of passenger cars, light trucks, and utility vehicles with 10V DC electrical systems, delivering a perfect drop-in replacement for matching factory relay part numbers.
- Built with high-conductivity pure copper internal contacts and a heat-resistant, flame-retardant hard plastic housing, this normally open relay resists corrosion, voltage surges, and under-hood heat to deliver consistent performance for thousands of operating cycles.
- This HFKW/010-1HW-C relay is brand new and factory performance tested, with no signs of wear, defects, or prior use to guarantee reliable functionality immediately upon installation.
- Engineered as a normally open 35DC relay, this unit is ideal for controlling vehicle cooling fans, fuel pumps, exterior lighting circuits, starter accessories, and other 10V DC automotive electrical components that require a triggered power supply.
- This full set of 35DC automotive relays comes shipped in a static-resistant protective bag to prevent electrical damage during transit, with all units neatly grouped for easy storage and quick access during repairs or upgrades.
