Compact structure, lightweight
High current capacity (Current Rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Double Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type (Reflow Solderable)
8. Coil Power: Standard Type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tape and Reel
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the sample)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

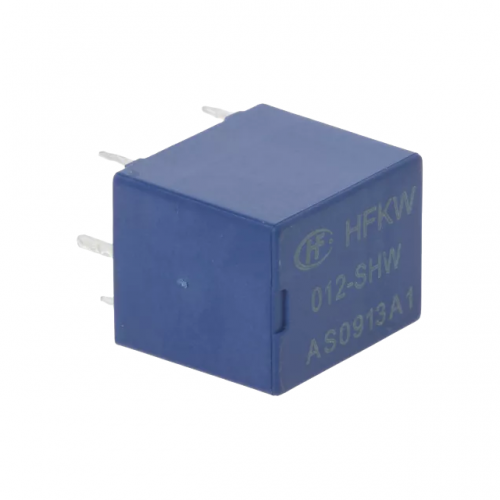

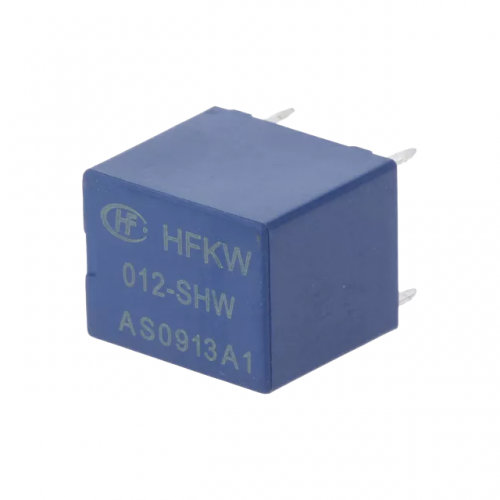

1W Automotive Relay HFKW/012-SHW-LC Dual Normally Open Single Contact
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 1W HFKW/012-SHW-LC dual normally open single contact automotive relay is universally compatible with most 12V passenger cars, light trucks, and custom automotive electrical modification projects.
- Built with high-conductivity copper alloy contacts and a heat-resistant flame-retardant plastic housing, this relay delivers consistent 1W operation and boasts a 100,000+ cycle service life even in harsh under-hood conditions.
- This brand new, factory-calibrated automotive relay passes rigorous pre-shipment conductivity, voltage load, and vibration testing to ensure reliable, defect-free performance upon installation.
- Perfect for powering and controlling automotive lighting systems, cooling fans, fuel pumps, power door locks, and audio upgrades, this dual normally open design prevents circuit overloads to protect sensitive electrical components.
- Each relay comes individually packaged in an anti-static blister pack to shield internal electrical components from electrostatic damage and physical impact during shipping and storage.
