Compact size
Dual normally open contacts
Standard terminal positions
Reflow solderable versions available
Plastic-encapsulated and solder mask types available
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact Form: Dual Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Type
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type (Reflow Soldering Type)
8. Coil Power: Standard Type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Paper Box & Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the sample)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

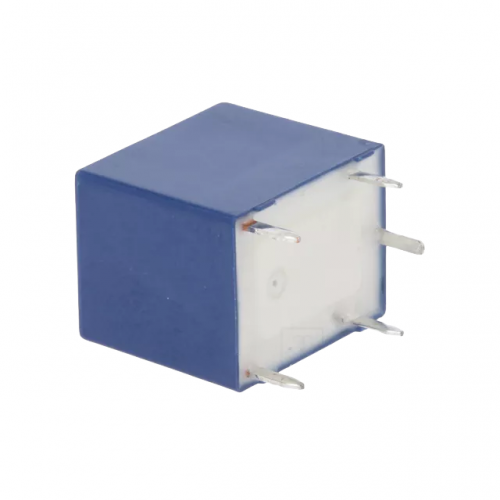

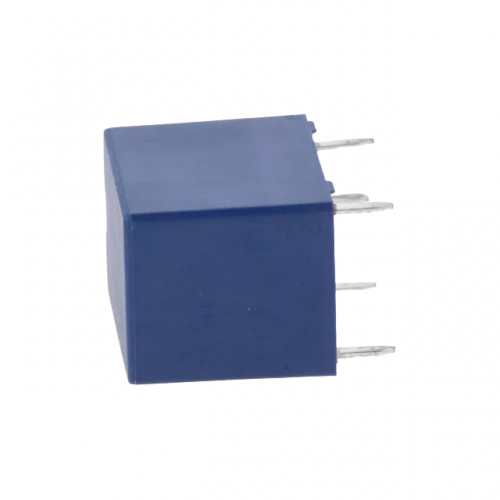

1W Automotive Relay HFKW/012-SHW-L Dual Normally Open Standard Power
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 1W HFKW/012-SHW-L dual normally open automotive relay is built to match original equipment specifications, offering a seamless drop-in replacement for most 12V domestic and import passenger cars, light trucks, and SUVs.
- Made with high-conductivity copper contact pins and a heat, vibration, and moisture-resistant flame-retardant housing, this standard power relay delivers consistent, long-lasting performance even in harsh under-hood environments.
- This brand new, factory-calibrated automotive relay has zero prior wear or use, and undergoes full functionality testing prior to distribution to eliminate manufacturing defects.
- Perfect for controlling headlights, cooling fans, fuel pumps, car audio upgrades, fog lights, and other 12V automotive electrical accessories that require stable, reliable power switching.
- Each relay ships in anti-static, moisture-sealed protective packaging to shield sensitive internal electrical components from damage during transit and storage before installation.
