Compact size
Dual normally open contacts
Standard terminal positions
Reflow solderable versions available
Plastic-encapsulated and solder mask types available
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact Form: Dual Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Molded
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Tape and Reel
12. Load voltage: 12
13. Rated coil power: Approx. 1W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the sample)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

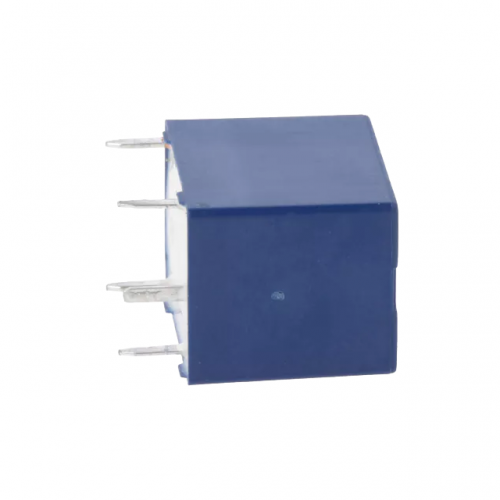

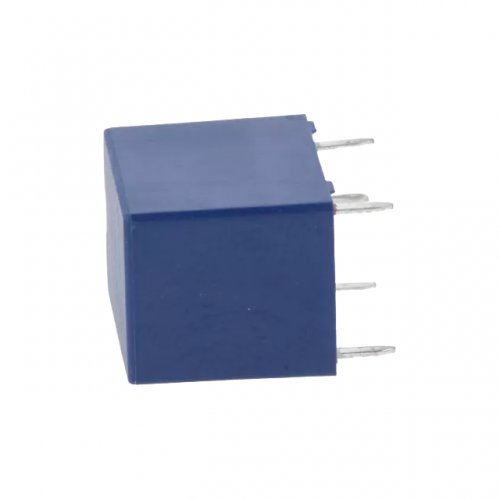

20DC Automotive Relay HFKW/012-SHW-C Dual Normally Open Single Contact
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 20DC HFKW/012-SHW-C dual normally open single contact automotive relay is designed to be compatible with most domestic and import passenger vehicles, light trucks, and off-road automotive builds that match its 12V operating specification.
- Built with heavy-duty corrosion-resistant copper alloy contacts, high-temperature resistant copper coil windings, and flame-retardant reinforced plastic housing, this relay withstands harsh under-hood conditions for long-lasting, consistent performance.
- This is a brand new, factory-tested OEM-grade automotive relay free of any wear, defects, or prior use, meeting all original equipment performance and safety standards for worry-free installation and operation.
- Perfect for powering high-draw automotive accessories including fuel pumps, cooling fans, fog lights, audio systems, and ignition circuits, this relay eliminates voltage drops and prevents circuit overload to protect connected electrical components.
- Each individual relay is packaged in a static-proof, shock-absorbent protective sleeve to avoid damage from static discharge, impact, and moisture during shipping and storage, ensuring it arrives in pristine working condition.
