Compact size
Dual normally open contacts
Standard terminal positions
Reflow solderable versions available
Plastic-encapsulated and solder mask types available
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact Form: Dual Normally Open
4. Number of Contacts: Single Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Carton & Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 20
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, refer to the sample)
23. Product application areas: Anti-theft devices, vehicle lighting control
24. Weight (units: g): Approx. 6
25. Volume (units: mm³): 15.7 × 12.5 × 14

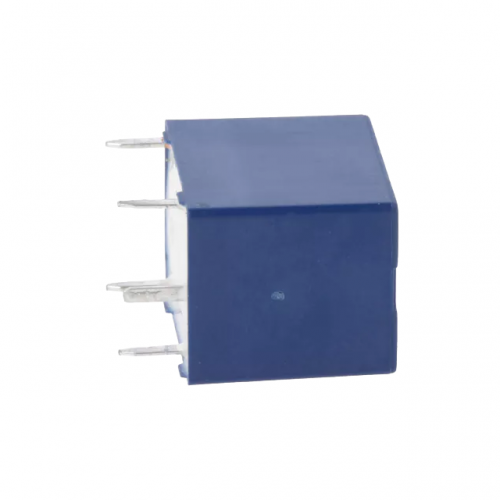

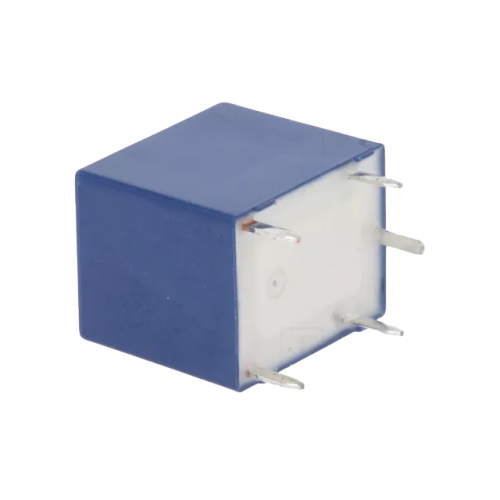

12VDC Automotive Headlight Control Relay HFKW/012-SHW Dual Normally Open
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- Engineered to fit a wide range of 12V passenger cars, light trucks, and SUVs, this HFKW/012-SHW headlight control relay delivers consistent power to eliminate flickering, dim output, and intermittent headlight failure.
- Constructed with heavy-duty pure copper internal contacts and a heat-resistant, flame-retardant ABS housing, this relay withstands harsh under-hood temperatures, vibration, and moisture for years of reliable use.
- This is a brand new, factory-calibrated 12VDC headlight control relay with zero prior use, matching OEM performance standards to serve as a direct drop-in replacement for your original failed unit.
- Its dual normally open design makes it perfect for both stock headlight system replacements and high-power LED/HID headlight upgrades, supporting independent control of high and low beam circuits without cross interference.
- Each relay ships in an anti-static, moisture-sealed protective pouch to prevent transit damage, and includes a quick-reference installation guide to cut down on setup time for both DIYers and professional mechanics.
