Compact structure, lightweight
High current capacity (Current rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact configuration: One changeover pair
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Solder mask type (reflow solderable)
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging: Tape and reel
12. Load voltage: 12
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For more details, please refer to the catalog)
23. Product Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Volume (Unit: mm³): 15.7 × 12.5 × 14

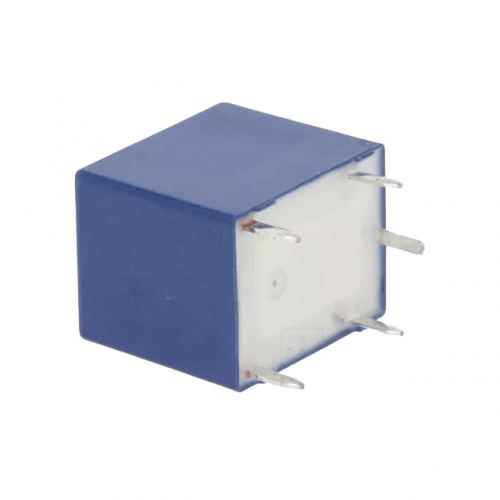

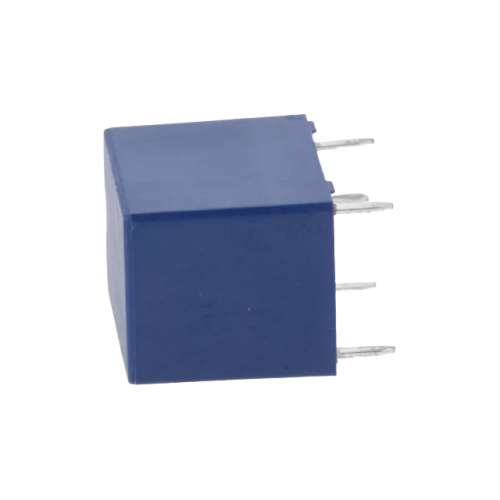

0.6W Automotive Wiper Relay HFKW/012-1ZW-LC Single-Pole Changeover
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.6W HFKW/012-1ZW-LC wiper relay is engineered to fit most 12V passenger cars, light trucks, and commercial vehicles, matching OEM specifications for seamless plug-and-play replacement without modifications.
- Built with flame-retardant high-temperature housing and heavy-duty silver alloy contact points, this single-pole changeover wiper relay maintains consistent performance even in high-vibration, moisture-heavy driving environments.
- This brand-new, factory-calibrated wiper relay has zero prior use or wear, and undergoes full functional testing before leaving the production line to guarantee reliable long-term operation.
- Purpose-built to regulate automotive wiper motor on/off cycles, speed settings, and delay functions, this relay resolves common issues like erratic wiper movement and total wiper failure for safer travel in rainy or snowy conditions.
- Each wiper relay ships in individual anti-static sealed packaging, protecting sensitive internal electrical components from static damage, dust, and moisture during transit and long-term storage.
