Compact structure, lightweight
High current capacity (Rated current: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact configuration: Single changeover
4. Number of contacts: Single contact
5. Lead Type: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type (Reflow Solderable)
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Carton & Tube
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Dimensions (Unit: mm³): 15.7 × 12.5 × 14

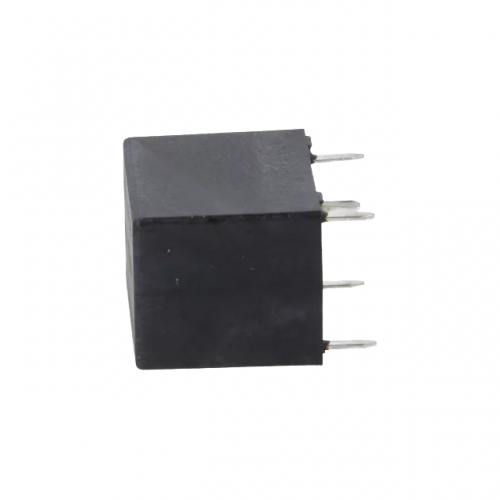

12VDC Automotive Wiper Relay HFKW/012-1ZW-L Single-Contact
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC HFKW/012-1ZW-L single-contact wiper relay matches OEM fit specifications for most domestic and import passenger vehicles, light trucks, and SUVs manufactured after 2000 for plug-and-play installation.
- Constructed with high-conductivity copper alloy contacts and a flame-retardant ABS housing, this wiper relay resists corrosion, overheating, and impact for years of reliable service even in harsh weather conditions.
- This brand-new, factory-calibrated wiper relay has zero prior use or wear, and undergoes strict performance testing before leaving the production line to eliminate factory defects.
- Engineered to regulate power supply to your vehicle’s windshield wiper system, this single-contact relay fixes common issues like intermittent wiper operation, non-functional wipers, and wiper motor burnout.
- Each wiper relay ships in an anti-static, sealed protective bag to prevent static damage and contamination during transit, ensuring you receive a fully intact part ready for immediate installation.
