Compact structure, lightweight
High current capacity (Rated current: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact configuration: One changeover contact
4. Number of contacts: Single contact
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Plastic-encapsulated
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging: Tape-and-reel packaging
12. Load voltage: 12
13. Rated coil power: Approx. 0.6W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤5
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Dimensions (Unit: mm³): 15.7 × 12.5 × 14

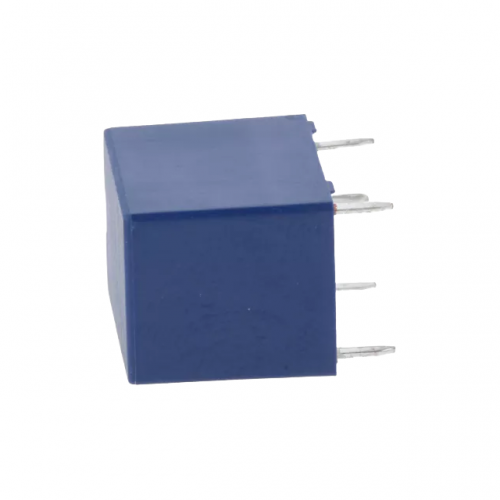

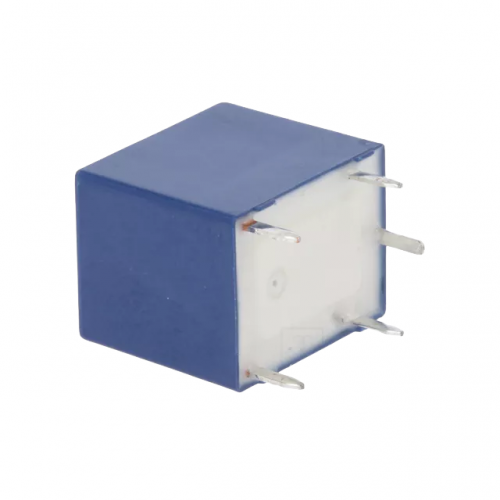

12VDC Automotive Seat Adjustment Relay HFKW/012-1ZW-C Standard Power
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC HFKW/012-1ZW-C seat adjustment relay is designed for direct fit compatibility with most passenger vehicles, pickup trucks, and SUVs that use a standard 12-volt power seat adjustment relay.
- Built with heavy-duty corrosion-resistant copper internal contacts and a flame-retardant hard plastic housing, this relay delivers long-lasting, consistent performance even with regular seat adjustment use.
- This is a brand-new, factory-calibrated standard power relay that meets all original equipment specifications for function and durability, with no prior use or cosmetic defects.
- This relay regulates power delivery to power seat adjustment motors, supporting all standard seat functions including forward/backward movement, recline, height adjustment, and lumbar support control.
- Each unit is shipped in an anti-static protective sealed bag to prevent electrical damage during transit, arriving fully functional and ready for immediate out-of-the-box installation.
