Compact structure, lightweight
High current capacity (Current rating: 35A/10min. 25A/1h)
Reflow solder type available
High thermal resistance
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact form: One set normally open
4. Number of contacts: Single contact
5. Lead Type: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type (Reflow Solderable)
8. Coil Power: Standard
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Tape and Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤5
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum rated switching current (DC): 35
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 85°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000 (For further details, refer to the product catalog)
23. Application Areas: Central door locking, mirror adjustment, turn signal control, automatic doors/windows, seat adjustment, speed limit signal control, preheating control, wiper control, etc.
24. Weight (Unit: g): Approx. 6
25. Dimensions (Unit: mm³): 15.7 × 12.5 × 14

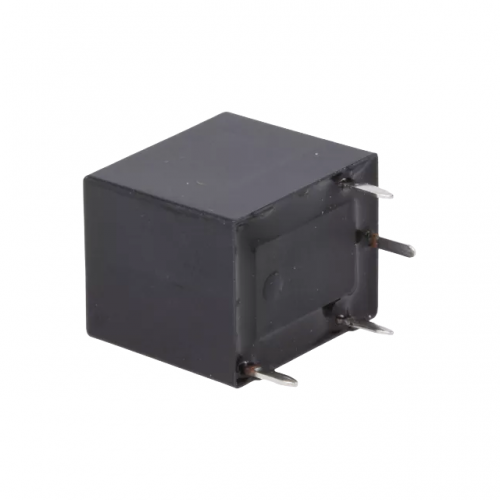

0.6W Automotive Automatic Window Relay HFKW/012-1HW-LC One Set Normally Open
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.6W automatic window relay is engineered for seamless compatibility with most 12V domestic and import passenger vehicles, trucks, and SUVs that fit the HFKW/012-1HW-LC relay form factor.
- Crafted with high-grade flame-retardant ABS housing and corrosion-resistant copper internal conductive pins, this relay delivers consistent performance even in the extreme temperature, vibration, and moisture conditions common in automotive environments.
- Sold as a brand new, factory-tested unit, this normally open 0.6W window relay is free of defects, wear, or prior use to guarantee reliable operation right out of the package.
- Ideal for replacing faulty automatic window control relays, this unit regulates power flow to your vehicle's window lift motor to resolve intermittent operation, unresponsive controls, and sudden window failure.
- Shipped as one complete set in static-protective, crush-resistant packaging, this HFKW/012-1HW-LC relay arrives undamaged and fully protected from electrostatic discharge during transport and storage.
