Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil voltage type: DC
2. Coil operating voltage: 24V DC
3. Contact configuration: One set normally open
4. Number of contacts: Single contact
5. Lead type: Quick-connect (280)
6. Mounting type: -
7. Package type: Plastic encapsulated
8. Lead structure: 2.8 mm
9. Coil Power: Standard
10. Coil Characteristic: Monostable
11. Contact Material: AgSnO₂
12. Insulation Class: -
13. Coil Parallel Component: Parallel Transient Suppression Resistor
14. Packaging: Tube or Blister Pack
15. Load Voltage: 27V
16. Rated Coil Power: 1.32W
17. Dielectric Withstand Voltage: 500 (Unit not specified; industry convention suggests VAC 1min. Confirm per catalog)
18. Operating Time (Unit: ms): ≤10
19. Release Time (Unit: ms): ≤15
20. Creepage Distance (Unit: mm): -
21. Electrical clearance (unit: mm): -
22. Insulation resistance (unit: MΩ): 100
23. Maximum rated switching current (AC): -
24. Maximum rated switching current (DC): 20
25. Maximum switching voltage (AC): -
26. Maximum Switching Voltage (DC): 40
27. Temperature Range: -40°C to 125°C
28. Mechanical Endurance (Units): 1,000,000
29. Electrical Endurance (Units): 100,000 (For more details, please refer to the catalog)
30. Contact Gap (Unit: mm): -
31. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
32. Application Locations: Automotive engine compartment, driver's compartment
33. Weight (Unit: g): Approx. 11
34. Volume (Unit: mm³): 15.6 × 15.2 × 16.4

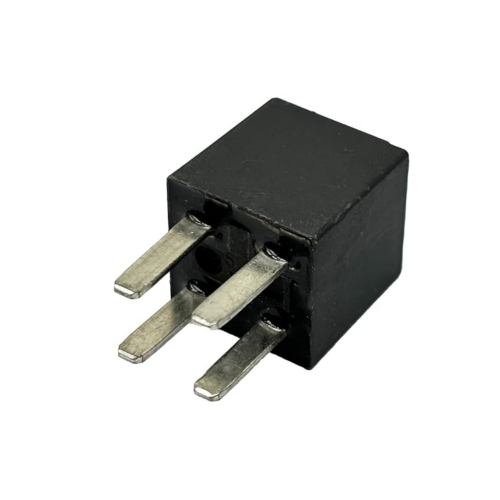

1.32W Automotive Headlight Control Relay HFV11/24-HS-R One Set Normally Open
US$ 9.78 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 24V 1.32W HFV11/24-HS-R normally open headlight control relay is compatible with most passenger cars, light trucks, and commercial vehicles that match the 24V HFV11 series relay specification.
- Built with high-conductivity copper contacts and a heat-resistant, flame-retardant plastic housing, this headlight control relay resists corrosion, vibration, and extreme temperature fluctuations for long-lasting use.
- This is a brand new, factory-calibrated headlight control relay that has passed strict performance testing, with no signs of wear, damage, or prior use to guarantee reliable function.
- This normally open headlight relay regulates power delivery to your vehicle’s headlight system, preventing circuit overloads, extending wiring lifespan, and ensuring consistent, bright illumination for safer nighttime driving.
- Each set of the HFV11/24-HS-R headlight control relay is shipped in anti-static, shock-absorbent sealed packaging to protect sensitive electrical components from damage during transit and storage.
