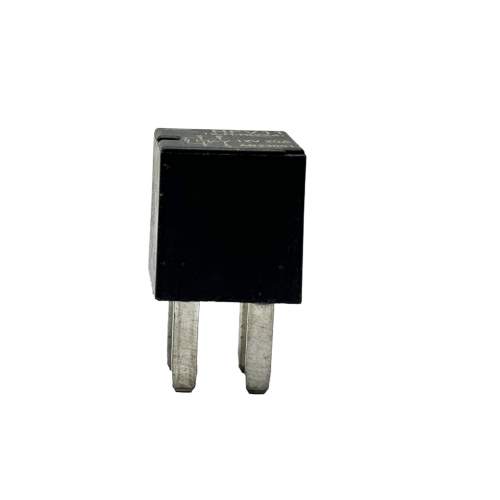

24VDC Automotive Fuel Pump Control Relay HFV11/24-HS Headlight Control

Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil voltage type: DC
2. Coil operating voltage: 24V DC
3. Contact configuration: One set of normally open
4. Number of contacts: Single contact
5. Lead form: Quick-connect (280)
6. Package type: Plastic encapsulated
7. Lead structure: 2.8 mm
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Coil parallel element: None
12. Packaging: Tube or blister pack
13. Load voltage: 27 (Assumed unit is V based on automotive relay context; refer to product catalog for confirmation)
14. Rated coil power: 1.32W
15. Dielectric withstand voltage: 500 (Assumed unit is “VAC 1min” based on industry standards; verify with product catalog)
16. Operating Time: ≤10ms
17. Release Time: ≤15ms
18. Insulation Resistance: 100MΩ
19. Maximum Rated Switching Current (DC): 20 (Assumed unit is A based on load control applications; refer to product datasheet for confirmation)
20. Maximum Switching Voltage (DC): 40 (unit inferred as V based on automotive circuit applications; refer to product datasheet for confirmation)
21. Temperature Range: -40°C to 125°C
22. Mechanical Endurance: 1,000,000 cycles
23. Electrical Endurance: 100,000 cycles (refer to datasheet for further details)
24. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
25. Application Locations: Automotive engine compartment, driver's compartment
26. Weight: Approx. 11g
27. Dimensions: 15.6 × 15.2 × 16.4mm³
