Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil voltage type: DC
2. Coil operating voltage: 24V DC
3. Contact configuration: One set of normally open
4. Number of contacts: Single contact
5. Lead type: Quick-connect (280)
6. Package type: Dust cap type
7. Lead structure: 2.8 mm
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Coil parallel component: Parallel transient suppression resistor
12. Packaging type: Tube or blister pack
13. Load voltage: 27 (Assumed unit is V based on automotive relay context; refer to product datasheet for confirmation)
14. Rated coil power: 1.32W
15. Dielectric Withstand Voltage: 500 (Assumed unit is “VAC 1min” based on industry standard parameters; refer to product datasheet for specifics)
16. Operating Time: ≤10ms
17. Release Time: ≤15ms
18. Insulation Resistance: 100MΩ
19. Maximum Rated Switching Current (DC): 20 (Assumed unit is A based on load control applications; refer to product datasheet for confirmation)
20. Maximum Switching Voltage (DC): 40 (unit inferred as V based on automotive circuit applications; refer to product datasheet for confirmation)
21. Temperature Range: -40°C to 125°C
22. Mechanical Endurance: 1,000,000 cycles
23. Electrical Endurance: 100,000 cycles (refer to datasheet for further details)
24. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
25. Application Locations: Automotive engine compartment, driver's compartment
26. Weight: Approx. 11g
27. Dimensions: 15.6 × 15.2 × 16.4mm³

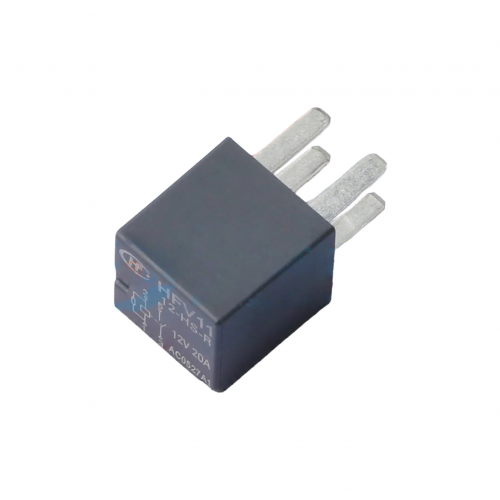

1.32W Automotive Fuel Pump Control Relay HFV11/24-H-R Monostable
US$ 8.57 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 1.32W HFV11/24-H-R monostable fuel pump control relay fits most 24V automotive and light truck fuel systems, serving as a direct drop-in replacement for original OEM relays matching the HFV11/24-H-R form factor.
- Crafted with high-grade copper internal contacts and a flame-retardant hard plastic housing, this fuel pump control relay resists vibration, corrosion, and electrical arcing to deliver consistent long-term performance even under harsh under-hood conditions.
- This is a brand-new, factory-tested monostable fuel pump control relay that undergoes strict conductivity and endurance testing to ensure it meets or exceeds original equipment performance specifications straight out of the package.
- This 24V 1.32W fuel pump control relay regulates power delivery to your vehicle's fuel pump, stabilizing fuel supply pressure, preventing overvoltage damage, and cutting down on unexpected stalling or no-start issues caused by a faulty old relay.
- Each HFV11/24-H-R fuel pump control relay is shipped in static-resistant sealed packaging to protect its sensitive internal electrical components from electrostatic discharge and accidental physical damage during transit.
