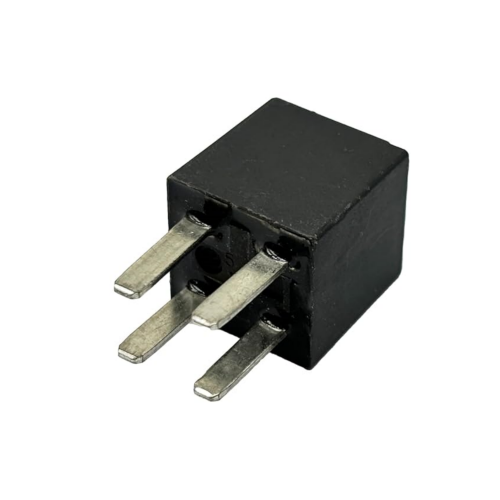

20DC Automotive Oil Pump Headlight Control Relay HFV11/24-H-D Standard Power

Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil voltage type: DC
2. Coil operating voltage: 24V DC
3. Contact configuration: One set of normally open
4. Number of contacts: Single contact
5. Lead type: Quick-connect (280)
6. Package type: Dust cap type
7. Lead structure: 2.8 mm
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Coil parallel component: Diode (Pin 2 connected to anode)
12. Packaging type: Tube or blister pack
13. Load voltage: 27 (Assumed unit is V based on automotive relay application context; refer to product datasheet for confirmation)
14. Rated coil power: 1.32W
15. Dielectric Withstand Voltage: 500 (Assumed unit is “VAC 1min” based on industry standard parameters; confirm with product datasheet)
16. Operating Time: ≤10ms
17. Release Time: ≤15ms
18. Insulation resistance: 100MΩ
19. Maximum rated switching current (DC): 20 (Based on automotive load control requirements, unit is presumed to be A; refer to product datasheet for confirmation)
20. Maximum Switching Voltage (DC): 40 (Based on automotive circuit specifications, unit is presumed to be V; refer to product datasheet for confirmation)
21. Temperature Range: -40°C to 125°C
22. Mechanical Endurance: 1,000,000 cycles
23. Electrical Endurance: 100,000 cycles (Refer to datasheet for further details)
24. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
25. Application Locations: Automotive engine compartment, driver's compartment
26. Weight: Approx. 11g
27. Dimensions: 15.6 × 15.2 × 16.4mm³
