Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V DC
3. Contact Configuration: One set of normally open
4. Number of Contacts: Single contact
5. Lead Terminal Type: Quick-connect (280)
6. Package type: Plastic encapsulated
7. Lead structure: 2.8 mm
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Coil parallel component: Diode (Pin 2 connected to anode)
12. Packaging: Tube or blister pack
13. Load voltage: 13.5 (Assumed unit is V based on automotive relay application; refer to product datasheet for confirmation)
14. Rated coil power: 0.95W
15. Dielectric Withstand Voltage: 500 (Assumed unit is “VAC 1min” based on industry standard parameters; confirm with product datasheet)
16. Operating Time: ≤10ms
17. Release Time: ≤15ms
绝缘电阻（单位：MΩ） 100 最大额定切换电流(AC) - 最大额定切换电流(DC)
20. Maximum Switching Voltage (DC): 40 (Based on automotive circuit specifications, unit is presumed to be V; refer to product datasheet for confirmation)
21. Temperature Range: -40°C to 125°C
22. Mechanical Endurance: 1,000,000 cycles
23. Electrical Endurance: 100,000 cycles (Refer to datasheet for further details)
24. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
25. Application Locations: Automotive engine compartment, driver's compartment
26. Weight: Approx. 11g
27. Dimensions: 15.6 × 15.2 × 16.4mm³

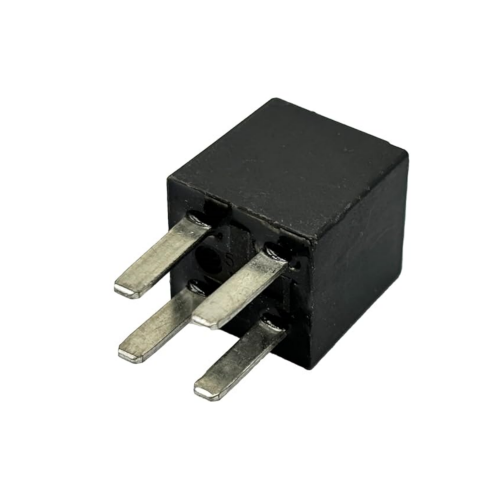

0.95W Automotive Horn Control Relay HFV11/12-HS-D One Set Normally Open
US$ 8.57 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFV11/12-HS-D 0.95W normally open automotive horn control relay is universally compatible with most 12V passenger cars, SUVs, and light trucks running stock or upgraded aftermarket horn systems.
- Built with high-purity copper conductive terminals, a flame-retardant hard ABS shell, and wear-resistant silver alloy contacts, this relay delivers consistent performance with a rated service life of over 100,000 switching cycles.
- This horn control relay is 100% brand new, factory tested for voltage stability and response sensitivity prior to shipment, with no signs of wear, damage, or prior installation.
- This normally open relay acts as a direct plug-and-play replacement for failed factory horn control relays, quickly fixing common issues like unresponsive horns, delayed horn activation, or inconsistent horn output.
- Each set of the 0.95W horn control relay comes packed in an anti-static sealed bag to protect internal components from electrostatic damage during transit and long-term storage.
