Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V DC
3. Contact Configuration: One set of normally open
4. Number of Contacts: Single contact
5. Terminal Configuration: Quick-connect (280)
6. Package Type: Dust cover type
7. Terminal Structure: 2.8 mm
8. Coil Power Rating: Standard
9. Coil Characteristic: Monostable
10. Contact material: AgSnO₂
11. Coil parallel component: Parallel transient suppression resistor
12. Packaging type: Tube or blister pack
13. Load voltage: 13.5 (Assumed unit is V based on automotive relay application context; refer to product catalog for exact specification)
14. Rated coil power: 0.95W
15. Dielectric Withstand Voltage: 500V
16. Operating Time: ≤10ms
17. Release Time: ≤15ms
18. Insulation Resistance: 100MΩ
19. Maximum Rated Switching Current (DC): 20A
20. Maximum Switching Voltage (DC): 40V
21. Temperature Range: -40°C to 125°C
22. Mechanical Endurance: 1,000,000 cycles
23. Electrical Endurance: 100,000 cycles
24. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
25. Application Locations: Automotive engine compartment, driver's compartment
26. Weight: Approx. 11g
27. Dimensions: 15.6 × 15.2 × 16.4mm³

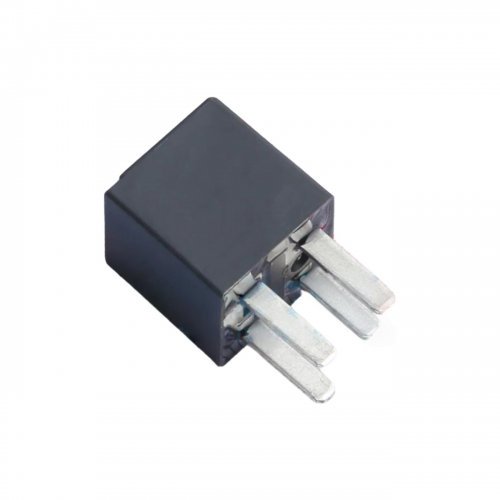

0.95W Automotive Headlight Control Relay HFV11/12-H-R 12VDC
US$ 8.57 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFV11/12-H-R 12VDC 0.95W headlight control relay is engineered to fit most 12V electrical system passenger vehicles, SUVs, and light trucks from popular domestic and import auto brands.
- Built with high-conductivity copper core contacts and heat-resistant flame-retardant ABS housing, this relay delivers stable performance even in harsh high-temperature engine bay environments.
- This brand new, factory-calibrated headlight control relay meets strict original equipment performance standards and is fully tested to be free of manufacturing defects before shipping.
- Purpose-built to regulate power supply to automotive headlight systems, this 0.95W relay eliminates common issues like headlight flickering, dim illumination, and premature bulb burnout by delivering consistent 12V power.
- Each HFV11/12-H-R relay is shipped in sealed anti-static packaging to protect sensitive internal electronic components from static discharge and physical damage during transit and storage.
