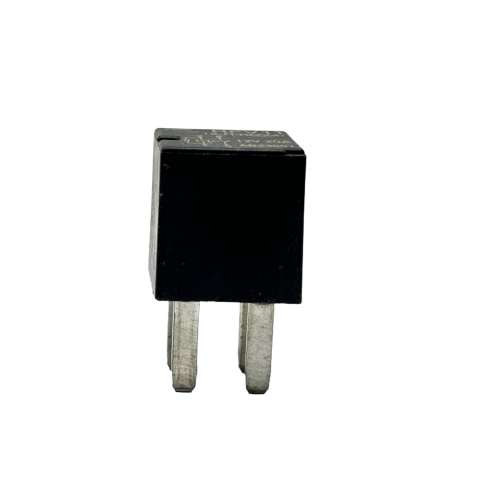

20DC Automotive Relay HFV11/12-H Single-Contact Headlight Control

Ultra-compact: (15.6 x 15.2 x 16.4)mm
Operating temperature range: -40°C to 125°C
Features one set of normally open contacts
2.8mm quick-connect terminals
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V DC
3. Contact Configuration: One set of normally open
4. Number of Contacts: Single contact
5. Terminal Configuration: Quick-connect (280)
6. Package Type: Dust cover type
7. Terminal Structure: 2.8 mm
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Coil Parallel Component: None
12. Packaging: Tube or Blister Pack
13. Load Voltage: 13.5V
14. Rated Coil Power: 0.95W
15. Dielectric Withstand Voltage: 500
16. Operating Time: ≤10ms
17. Release Time: ≤15ms
18. Insulation Resistance: 100MΩ
19. Maximum rated switching current (DC): 20
20. Maximum switching voltage (DC): 40
21. Temperature range: -40°C to 125°C
22. Mechanical endurance: 1,000,000 cycles
23. Electrical endurance: 100,000 cycles (Refer to datasheet for details)
24. Application Fields: Headlight control, fuel pump control, horn control, A/C compressor clutch control, etc.
25. Application Locations: Automotive engine compartment, driver's compartment
26. Weight: Approx. 11g
27. Dimensions: 15.6 × 15.2 × 16.4mm³
