Product Description
This motor adopts a planetary gearbox design, combined with advanced DC brushless motor technology, and has efficient and stable performance.
The Round Gearbox Brushless Motor is a cutting-edge solution that combines the power of brushless technology with the precision and versatility of a robust gearbox system. Within this motor system, you'll find the exceptional performance of the geared bldc motor, the reliable functionality of the brushless dc planetary gear motor, and the enhanced efficiency of the brushless dc motor with planetary gearbox.
The geared bldc motor, a key component of the Round Gearbox Brushless Motor, showcases unparalleled power, thanks to its brushless design and integrated gearbox. The geared bldc motor delivers exceptional torque, accuracy, and compactness, making it an ideal choice for applications that demand both strength and precision.
The brushless dc planetary gear motor, another remarkable component of the Round Gearbox Brushless Motor, harnesses the advantages of brushless motor technology with the torque multiplication of a planetary gearbox. The brushless dc planetary gear motor provides superior performance, reduced maintenance, and precise control, making it a reliable solution for a variety of applications.
Completing the trio of remarkable components is the brushless dc motor with planetary gearbox, which combines the efficiency and reliability of brushless motor technology with the torque multiplication and compactness of a planetary gearbox. This configuration offers enhanced power, reduced maintenance requirements, and precise control, making the brushless dc motor with planetary gearbox an excellent choice for applications in robotics, automation, and industrial machinery.
Electrical Specifications
| Motor Model | 32RLSE240930 | 32RLSE241430 | 32RLSE241830 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 4000 | ||
| Rated Torque(N.m) | 0.03 | 0.045 | 0.06 |
| Rated Power(W) | 12.5 | 18.8 | 25 |
| Length(mm) | 56 | 66 | 76 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 | 3 |
| Transmission efficiency | 90% | 81% | 73% |
| Max radial load | 35N | 35N | 35N |
| Max axial load | 20N | 20N | 20N |
| Transmission torque | 0.3N.m | 1.2N.m | 2.5N.m |
| Reduction Ratio | 3.7,5.18,6.75 | 14,19,25,27,35,45 | 51,71,93,100,139,181,236,307 |
| Length(mm) | 25.6 | 34 | 42 |

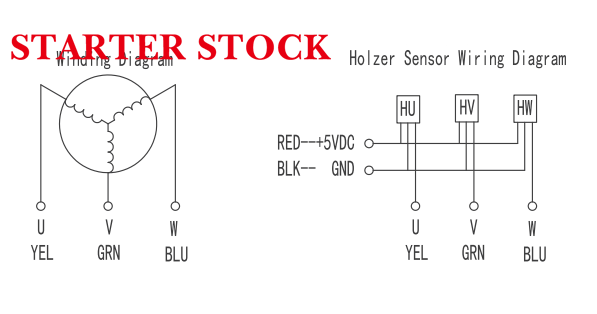

Wiring Diagram

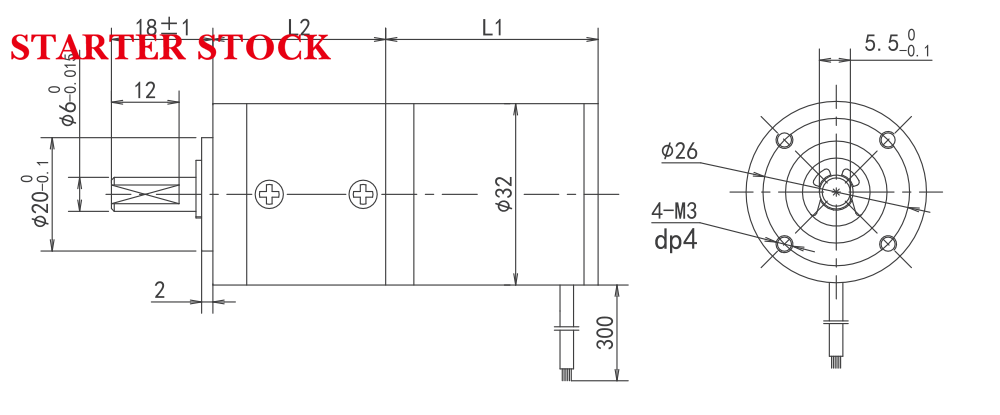

Dimensions(Unit: mm)
