Product Description
The 60PGR-57WSSF series planetary gearbox circular DC brushless motor is renowned for its excellent performance and reliability. Its precise design ensures efficient and low-noise operation.
bldc motor suppliers offer Brushless motor gear refers to the gear system specifically designed to be used with a brushless motor. It allows the brushless motor to transmit torque and power efficiently to the driven load. The brushless motor gear system is designed to handle the unique characteristics and requirements of brushless motors, such as their high RPM range and precise control.
On the other hand, a gearbox for bldc motor refers to the mechanical device that provides speed reduction, torque multiplication, and direction control to the output shaft of a BLDC motor. The gearbox enhances the performance and versatility of the gearbox for bldc motor by adjusting the speed and torque output to suit the desired application.
When it comes to sourcing BLDC motors, there are several suppliers available in the market. These suppliers specialize in manufacturing and supplying a wide range of BLDC motors for various industries and applications. They offer different motor sizes, power ratings, and specifications to meet specific customer requirements. These suppliers often provide technical support, customization options, and after-sales services to ensure customer satisfaction.
Electrical Specifications
| Motor Model | 57WSSF487030 | 57WSSF481430 | 57WSSF482130 |
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.22 | 0.44 | 0.66 |
| Rated Power(W) | 70 | 140 | 210 |
| Length(mm) | 55 | 75 | 95 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 580N | 580N |
| Max axial load | 340N | 340N |
| Transmission torque | 25N.m | 40N.m |
| Reduction Ratio | 5,10 | 15,20,25,30,40,50 |
| Length(mm) | 48 | 64 |

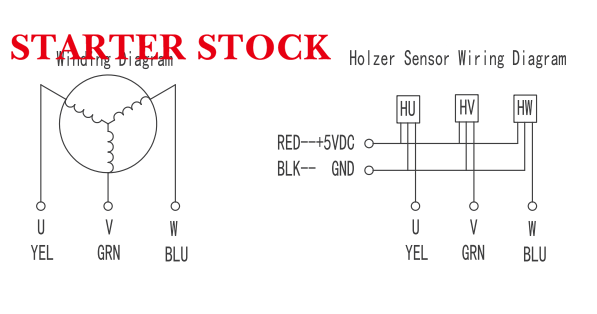

Wiring Diagram

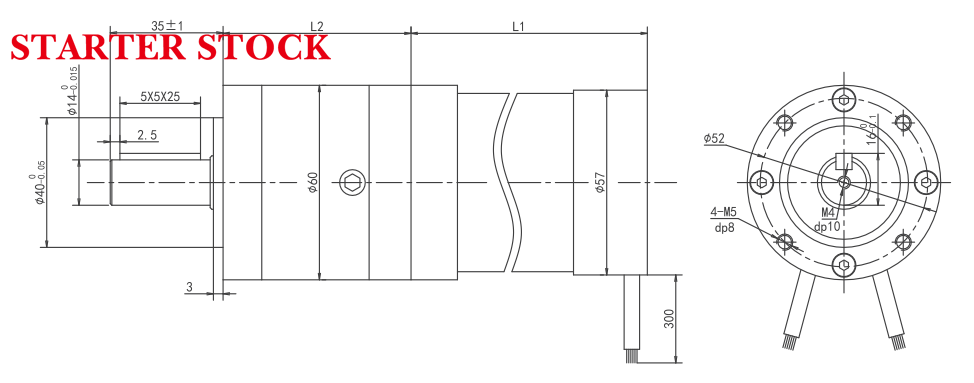

Dimensions(Unit: mm)
