Product Description
The 80PGR-82BSTE series planetary gearbox circular DC brushless motor is a high-performance industrial grade motor with excellent speed and torque characteristics.
baolong offer brushless DC gearmotor is a motor system that combines a brushless DC motor with a gearbox. The brushless DC motor provides efficient operation, high power density, and precise control, while the gearbox enhances torque output and enables speed reduction. The brushless DC gearmotor is commonly used in applications where high torque, compact size, and accurate speed control are required, such as robotics, automation, and electric vehicles.
A brushless gear motor, on the other hand, generally refers to a brushless motor that incorporates a gear system for torque multiplication and speed reduction. This type of motor offers the advantages of brushless technology, such as high efficiency and low maintenance, combined with the benefits of a gear system, such as increased torque and precise control. Brushless gear motors find applications in various industries, including industrial automation, medical equipment, and HVAC systems.
When searching for brushless DC motor manufacturers, it's essential to consider factors such as their reputation, experience, product quality, and manufacturing capabilities.
Electrical Specifications
| Motor Model | 82BSTE481830 | 82BSTE482530 |
| Rated Voltage(VDC) | 48 | |
| Rated Speed(Rpm) | 3000 | |
| Rated Torque(N.m) | 0.6 | 0.8 |
| Rated Power(W) | 188 | 250 |
| Length(mm) | 93 | 103 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 1000N | 1000N |
| Max axial load | 500N | 500N |
| Transmission torque | 50N.m | 80N.m |
| Reduction Ratio | 5,10 | 15,20,25,30,40,50 |
| Length(mm) | 58 | 77 |

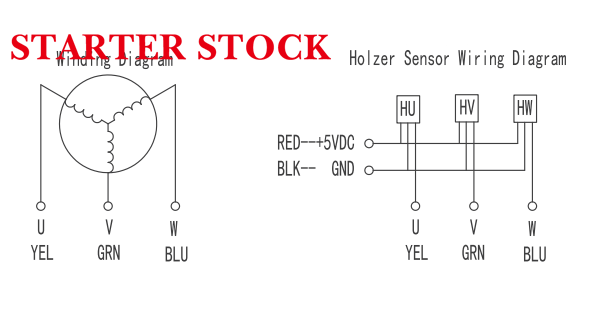

Wiring Diagram

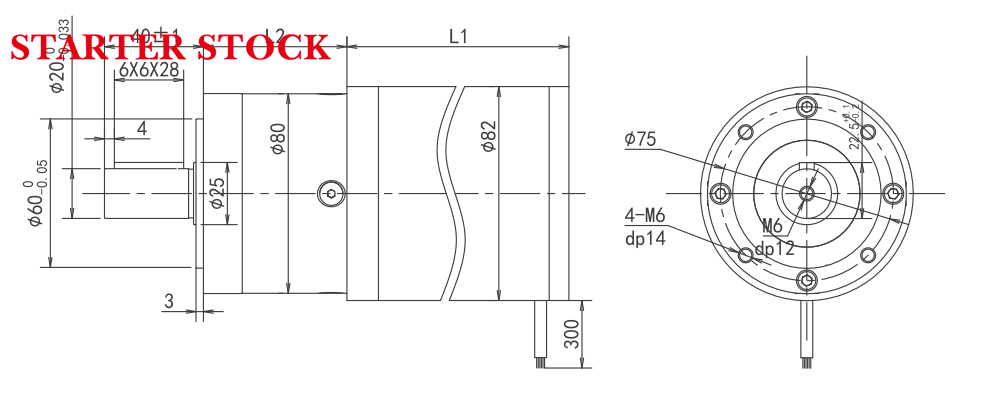

Dimensions(Unit: mm)
