Product Description
The 46EL series external rotor brushless motor is known as an advanced driving device for its compact size and efficient performance.
The Outer Rotor Brushless Motor is an exceptional motor configuration that excels in delivering high torque low RPM, making it a perfect choice for applications that require substantial torque output at low speeds. The defining feature of the outer rotor brushless motor is its ability to generate remarkable torque even at low rotational speeds. This high torque low RPM DC motor design offers exceptional performance, reliability, and control in a wide range of demanding applications.
The outer rotor brushless motor, with its unique characteristics, stands out in the realm of motor technology. Its outer rotor configuration enables efficient power transmission and precise control, ensuring optimal performance in tasks that demand significant torque output at lower speeds. This motor design is particularly advantageous in applications where heavy loads or high torque requirements are prevalent.
High torque low RPM motor, brushless DC motor high torque low speed, and 3 phase BLDC motor driver—underscores the key features and advantages of this motor design, highlighting its ability to deliver exceptional torque performance at lower rotational speeds.
Electrical Specifications
| Motor Model | 46ELTH244050 | 46ELTH246050 | 46ELTH248050 |
| Number of Phase | 3 | ||
| Number of Poles | 16 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 5000 | ||
| Rated Torque (N.m) | 0.08 | 0.12 | 0.16 |
| Rated Power (W) | 40 | 60 | 80 |
| Rated Current (A) | 2.5 | 3.8 | 5.1 |
| Peak Current (A) | 7.5 | 11.4 | 15.2 |
| Peak Torque (N.M) | 0.24 | 0.36 | 0.48 |
| Rotor Inertia (kg.cm²) | 0.2 | 0.35 | 0.5 |
| Torque Constant (N.m/A) | 0.03 | 0.03 | 0.03 |
| Torque Constant (V/krpm) | 2.8 | 2.8 | 2.8 |
| Line-Line Resistance (Ω) | 1.5 | 0.9 | 0.4 |
| Line-Line Inductance (mH) | 1.3 | 0.8 | 0.3 |
| Length (mm) | 25.3 | 30.3 | 35.3 |
| Weight (kg) | 0.2 | 0.3 | 0.4 |

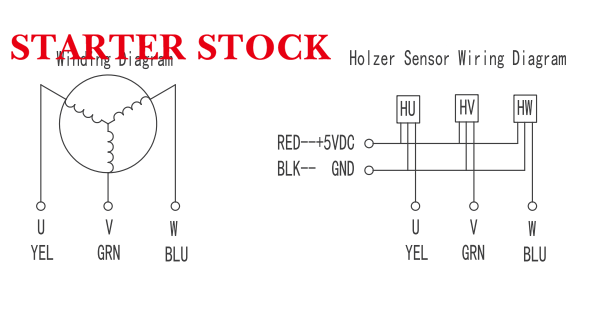

Wiring Diagram

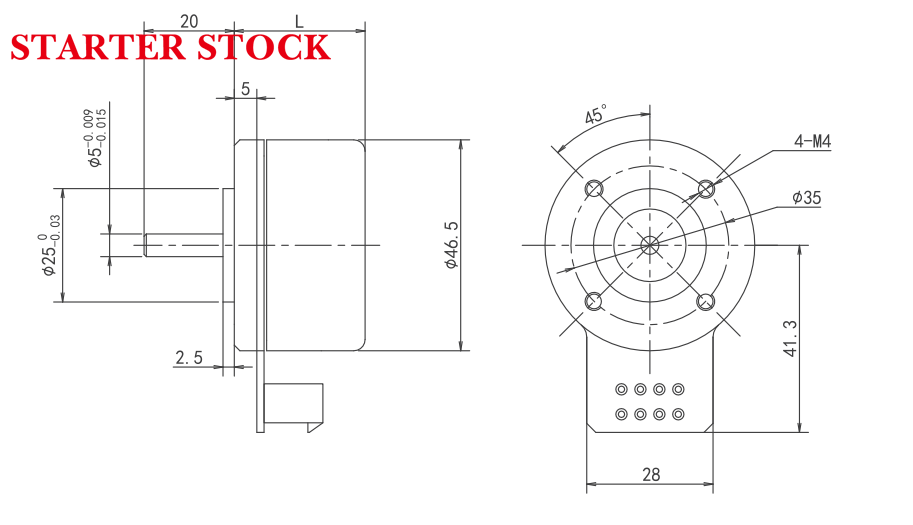

Dimensions(Unit: mm)
