Product Description
The 60EL series external rotor brushless motor is renowned for its excellent performance and reliability. Its compact design and efficient energy conversion make it an ideal choice for various industrial applications.
The External Rotor Brushless Motor is a remarkable motor design known for its high torque low speed capabilities. This motor configuration features an external rotor, which enables efficient power transmission and precise control, making it an ideal choice for applications that require substantial torque output at low speeds. The external rotor brushless motor excels in delivering exceptional torque performance even at reduced rotational speeds.
The high torque low speed electric motor is a key attribute of the external rotor brushless motor. With this configuration, the motor can generate significant torque output while operating at lower speeds. This characteristic is particularly advantageous in applications where precise control and high torque are essential, such as robotics, automation, and industrial machinery.
Additionally, the external rotor brushless motor is available in small sizes, making it suitable for compact applications that require a small high torque low RPM electric motor. This compact design maintains the motor's exceptional torque capabilities while offering flexibility in space-constrained environments.
Electrical Specifications
| Motor Model | 60ELTH244530 | 60ELTH246030 | 60ELTH249030 |
| Number of Phase | 3 | ||
| Number of Poles | 16 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.15 | 0.2 | 0.3 |
| Rated Power (W) | 45 | 60 | 90 |
| Rated Current (A) | 2.9 | 3.8 | 5.8 |
| Peak Current (A) | 8.7 | 11.4 | 17.4 |
| Peak Torque (N.M) | 0.45 | 0.6 | 0.9 |
| Rotor Inertia (kg.cm²) | 0.7 | 1.0 | 1.3 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.5 | 4.5 | 4.5 |
| Line-Line Resistance (Ω) | 0.7 | 0.45 | 0.2 |
| Line-Line Inductance (mH) | 0.25 | 0.15 | 0.1 |
| Length (mm) | 26.3 | 31.3 | 36.3 |
| Weight (kg) | 0.3 | 0.4 | 0.5 |

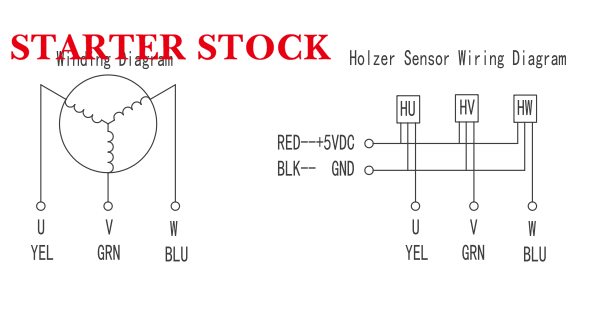

Wiring Diagram

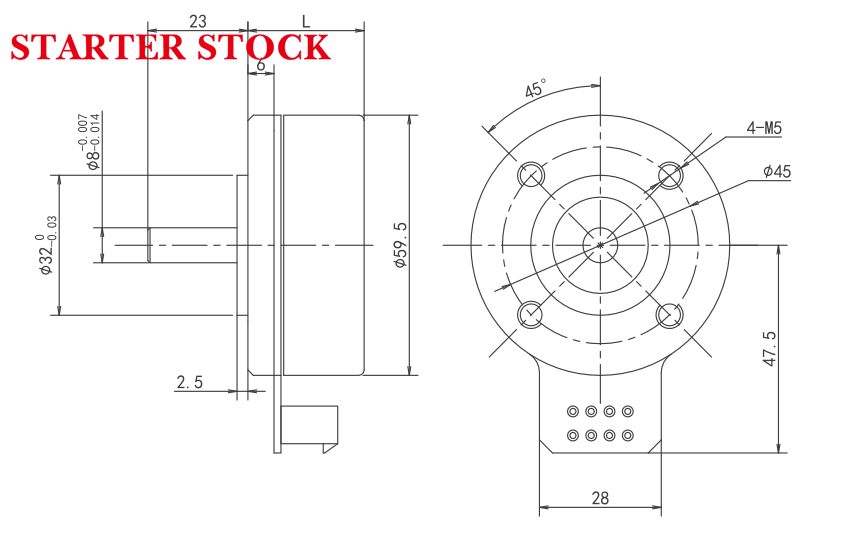

Dimensions(Unit: mm)
