1 years
China
For Suzuki Models:
GSX-1300R HAYABUSA 1300 1999-2007
GSX-1300RZ HAYABUSA 1300 LTD 2002-2007

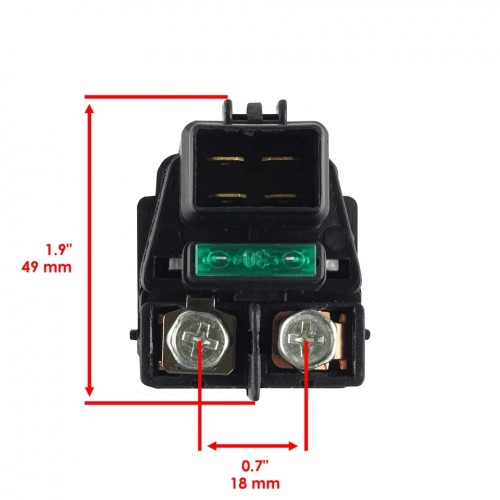

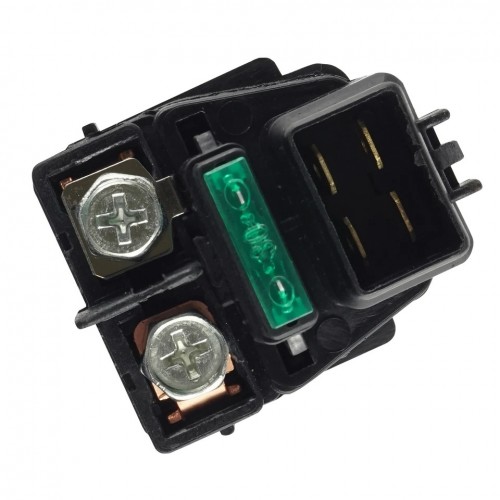

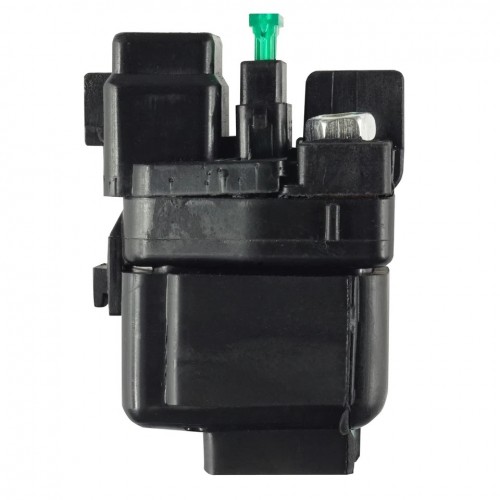

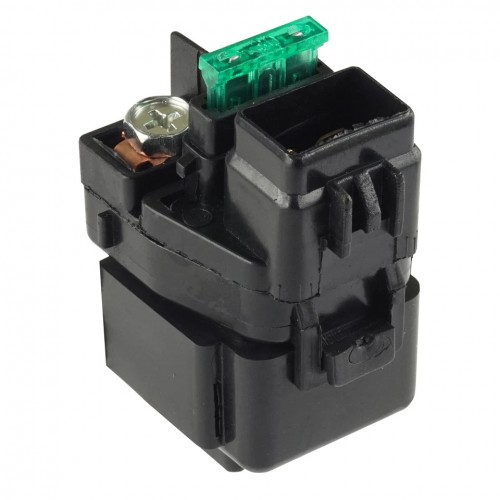

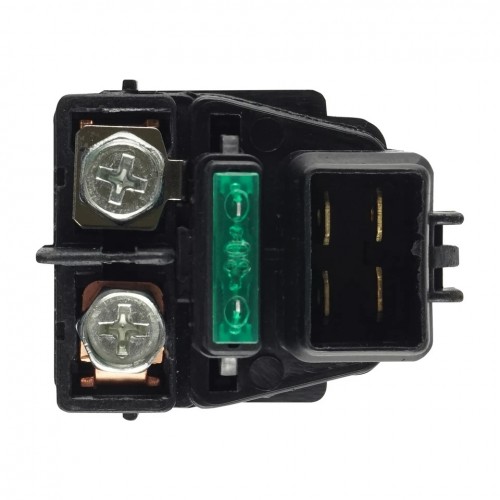

Product Material High-grade copper internal coil + flame-retardant ABS housing + anti-corrosion zinc-plated metal terminals OEM Reference Part Number 31800-24E00, 31800-24E10, 31800-24E11, 31800-24E20 Rated Operating Voltage 12V DC, compatible with stock Suzuki motorcycle electrical systems Rated Current Capacity 80A continuous load, 150A peak instantaneous load capacity Operating Temperature Range -40°F to 221°F (-40°C to 105°C), fits all regular on-road riding environments Mounting Hole Center Spacing 2.76 inches (70mm), 1:1 match to factory mounting points Terminal Configuration 4 terminal posts: 2 large 6mm power terminals, 2 small 4mm control terminals Waterproof Protection Rating IP65, dustproof and resistant to rain and regular vehicle washing water spray Certification Standard ISO 9001 certified, performance meets or exceeds original OEM specifications Installation Type Direct plug-and-play replacement, no wiring or structural modification required for compatible models Service Life ≥ 30,000 operation cycles under rated load conditions Package Contents 1 x starter solenoid relay, 2 x mounting bolts, 2 x terminal insulating caps
