1 years
China
For Honda Models:
CRF250R 2018-2023

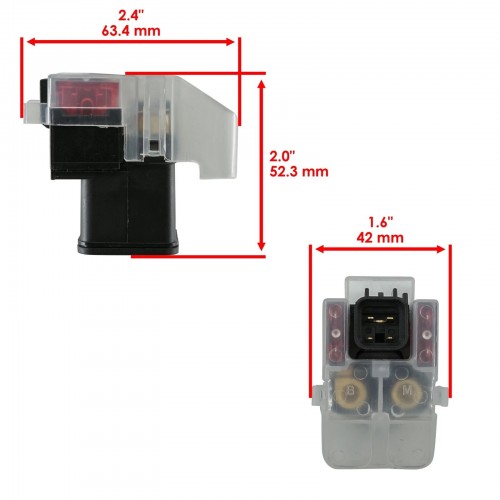

Width: 1.6" | 42.0 mm
Length: 2.4" | 63.4 mm
Height : 2.0" | 52.3 mm
Housing Material High-strength flame-retardant ABS with tin-plated copper internal conductors Rated Voltage 12V DC, compatible with stock Honda CRF250R electrical system Rated Load Current 100A continuous, 300A momentary peak load capacity Terminal Configuration 2 x M6 threaded power terminals, 2 x 6.3mm spade control terminals Protection Rating IP65 dustproof and waterproof, ideal for off-road and wet riding conditions Operating Temperature Range -40°C to 125°C / -40°F to 257°F, adapts to extreme climate conditions OE Reference Part Number 35850-K95-A41, direct replacement for original factory part Mounting Hole Diameter 6.5mm / 0.26 inch, perfectly matches OEM mounting bracket holes Internal Contact Material Silver-plated oxygen-free copper, low contact resistance, no high-load arcing Service Life ≥ 30,000 on-off cycles under rated load, extended durability over OEM
