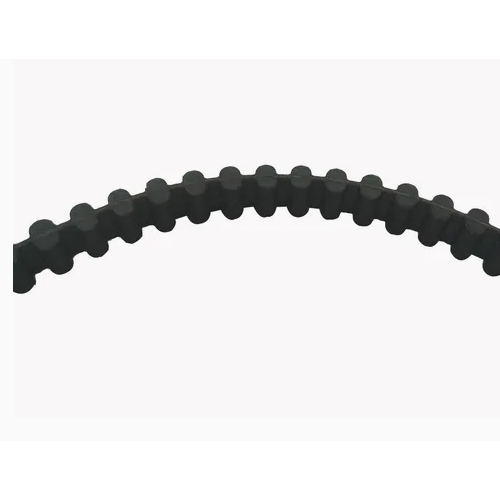

| T-toothed timing belt | TYPE | Pitch | Booth adge | Bottom tooth thickness | Tooth height | Fillet | Tip | Belt thickness | teeth number range | Pitch length |
| Pb | 2y° | s | hg | rr | ra | H | ||||
 | MXL | 2.023 | 40 | 1.14 | 0.51 | 0.13 | 0.13 | 1.14 | 43~2044 | 87.38~4153.41 |
| XXL | 3.175 | 50 | 1.73 | 0.76 | 0.20 | 0.20 | 1.52 | 46~124 | 146.05~393.70 | |
| XL | 5.085 | 2.57 | 1.27 | 0.38 | 0.38 | 2.3 | 22~510 | 111.76~2590.80 | ||
| L | 9.525 | 40 | 4.65 | 1.91 | 0.51 | 0.51 | 3.6 | 23~530 | 219.08~5048.25 | |
| H | 12.700 | 6.12 | 2.29 | 1.02 | 1.02 | 4.3 | 29~440 | 368.30~5588.00 | ||
| XH | 22.225 | 12.57 | 6.35 | 1.57 | 1.57 | 11.2 | 53~220 | 1177.93~4889.50 | ||
| XXH | 31.750 | 19.05 | 9.53 | 2.29 | 2.29 | 15.7 | 56~144 | 1778.00~4572.00 | ||
| T2.5 | 2.5 | 40 | 1.50 | 0.70 | 0.2 | 0.2 | 1.3 | 42~312 | 105.00~780.00 | |
| T5 | 5 | 2.65 | 1.20 | 0.4 | 0.4 | 2.2 | 30~400 | 150.00~2000.00 | ||
| T10 | 10 | 5.30 | 2.50 | 0.6 | 0.6 | 4.5 | 34~536 | 340.00~5360.00 | ||
| T20 | 20 | 10.15 | 5.00 | 0.8 | 0.8 | 8.0 | 61~181 | 1220.00~3620.00 |
HTD-toothed | TYPE | Pitch | Booth adge | Bottom tooth thickness | Tooth height | Fillet | Tip | Belt thickness | teeth number range | Pitch length |
| Pb | 2y° | s | hg | rr | ra | H | ||||
 | 3M | 3 | 14 | 1.78 | 1.17 | 0.24-0.30 | 0.87 | 2.4 | 35~1000 | 105.00~3000.00 |
| 5M | 5 | 3.05 | 2.06 | 0.40-0.44 | 1.49 | 3.8 | 35~852 | 175.00~4260.00 | ||
| 8M | 8 | 5.15 | 3.36 | 0.64-0.76 | 2.46 | 6.0 | 36~565 | 288.00~4520.00 | ||
| 14M | 14 | 9.40 | 6.02 | 1.20-1.35 | 4.50 | 10.0 | 56~340 | 784.00~4760.00 | ||
| 20M | 20 | 14.00 | 8.40 | 1.77-2.01 | 6.50 | 13.20 | 100~260 | 2000.00~5200.00 |
STPD/STS-toothed timing belt | TYPE | Pitch | Bottom tooth thickness | Tooth height | Fillet radius | Fillet | Tip | Belt thickness | teeth number range | Pitch length |
| Pb | s | hg | rbb | rr | ra | H | ||||
 | S2M | 2 | 1.3 | 0.76 | 1.3 | 0.20 | 0.20 | 1.36 | 44~1914 | 88.00~3828.00 |
| S3M | 3 | 1.95 | 1.14 | 1.95 | 0.30 | 0.30 | 1.94 | 41~500 | 123.00~1500.00 | |
| S4.5M | 4.5 | 2.93 | 1.71 | 2.93 | 0.45 | 0.45 | 2.81 | 40~201 | 180.00~904.50 | |
| S5M | 5 | 3.25 | 1.91 | 3.25 | 0.50 | 0.50 | 3.41 | 30~560 | 150.00~2800.00 | |
| S8M | 8 | 5.20 | 3.05 | 5.20 | 0.80 | 0.80 | 5.30 | 53~500 | 424.00~4000.00 | |
| S14M | 14 | 9.10 | 5.30 | 9.10 | 1.40 | 1.40 | 10.2 | 69~322 | 966.00~4508.00 |
RPP/HPPD-toothed timing belt | TYPE | Pitch | Bottom tooth thickness | Tooth height | Belt thickness | teeth number range | Pitch length |
| Pb | s | hg | H | ||||
 | P2M | 2 | 1.30 | 0.73 | 1.3 | 56~612 | 112.00~1224.00 |
| P3M | 3 | 1.95 | 1.09 | 2.1 | 30~621 | 90.00~1863.00 | |
| P5M | 5 | 3.25 | 1.81 | 3.6 | 36~400 | 180.00~2000.00 | |
| P8M | 8 | 5.20 | 2.90 | 5.5 | 40~550 | 320.00~4400.00 | |
| P14M | 14 | 9.50 | 6.00 | 10.0 | 69~327 | 966.00~4578.00 |
