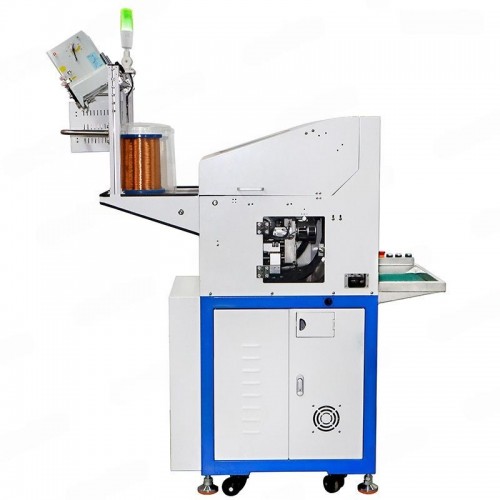

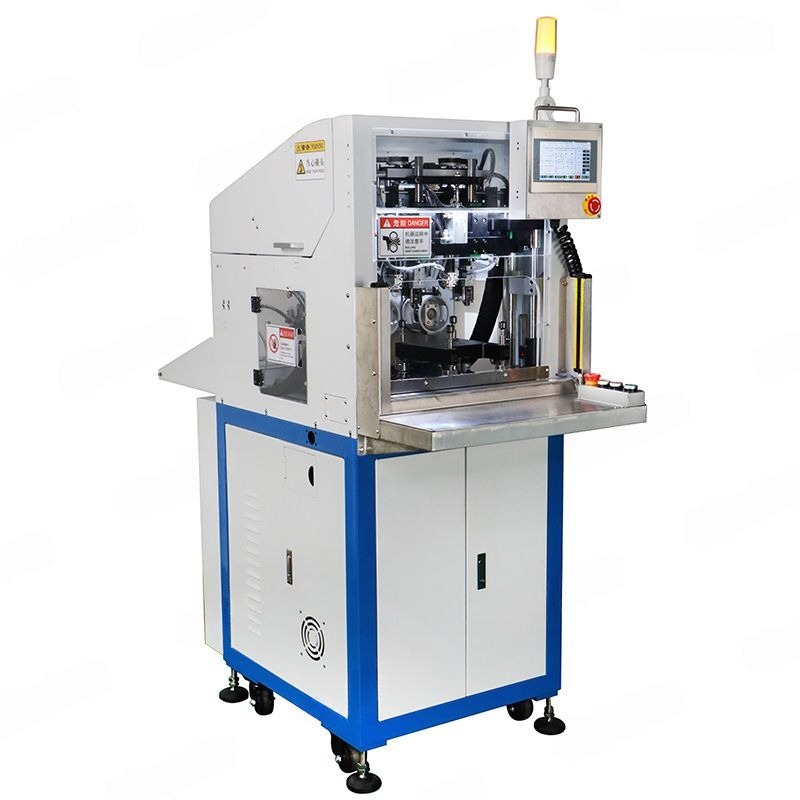

R2207 2+2 Stations Coarse Wire Type Automatic Winding Machine

US$ 8000.00 / 1 Piece
1Piece Minimum order
Brand:
QIWEI
About this item
  • 4 stations(2 stations winding + 2 stations loading and unloading)automatic winding, automatic wiring, automatic pole changeing, automaticwrapping PIN angle, automatic dividing line, automatic cutting line headand end.
  • Adopting Qiwei high-speed control system, imported precision lead screw,imported servo motor drive, Chinese and English touch screen interface, additionalupper and lower axis motion mechanism of three dimensional motionmode: X, Y, z three-axis direction linkage of thickline sltting and windingangle, and additional four-axis movement of the patent agencies, greatlyenhance and break through the demand for thick-line splitting, to achieveuniform winding package, high stability. The main frame and three-dimensional motion mechanism are made. of high quality casting parts, with high machining accuracy, firm and reliable.
  • The fixture adopts imported materials, special heat tre atment and manygrinding processes, with high accuracy and good abrasion resistance.
  • Corresponding to the simple replacement of fixture structure, fixture canbe exchanged in a short time.
  • Optional safety grating.
Dongguan Qiwei Motor Technology Co., Ltd
1 1 years China
Avg Response Time: ≤24 h
Business Type: Source Material
Chat

Products related to this item

GIM3505-8(Bare Motor) ultra-mini brushless DC motor is driven by a built-in planetary geared motor and a quadruped robot
GIM3505-8(Bare Motor) ultra-mini brushless DC motor is driven by a built-in planetary geared motor and a quadruped robot
Polyamide composite direct soldering polyurethane enameled round copper wire
Polyamide composite direct soldering polyurethane enameled round copper wire
Stator coil 6A1-85520-00 6A1-85520-00 Yamaha 2HP 2 MSH 1995-2002 2HP 2B MHS 1995-2006 2HP 2C MHS 2010
Stator coil 6A1-85520-00 6A1-85520-00 Yamaha 2HP 2 MSH 1995-2002 2HP 2B MHS 1995-2006 2HP 2C MHS 2010
Air Filter for Briggs & Stratton 790166 698867 5404 5404H 5404K 100-834 30-123 093302 093312 093332 3.5-4 gross HP 275-525 Engine
Air Filter for Briggs & Stratton 790166 698867 5404 5404H 5404K 100-834 30-123 093302 093312 093332 3.5-4 gross HP 275-525 Engine
Car Starter Motor For Cummins 50-8420
Car Starter Motor For Cummins 50-8420
10 inch single and double shaft toothed electromagnetic brake motor electric car electric wheelchair DC brushless motor
10 inch single and double shaft toothed electromagnetic brake motor electric car electric wheelchair DC brushless motor
443113510000 Motorcycle Parts Rectifier Voltage Stabilizer Regulator For Jawa 250 350 353 354 356 36
443113510000 Motorcycle Parts Rectifier Voltage Stabilizer Regulator For Jawa 250 350 353 354 356 36
Brand New Voltage Regulator Rectifier for Arctic Cat ATV 650 V2 / V-2 4x4 (2004–2006) | Motorcycle ATV UTV Snowmobile | 0430-046
Brand New Voltage Regulator Rectifier for Arctic Cat ATV 650 V2 / V-2 4x4 (2004–2006) | Motorcycle ATV UTV Snowmobile | 0430-046
Rust-Resistant and High-Temperature-Resistant Motor Housings, DC Motor Shells, Brushless and Stepper
Rust-Resistant and High-Temperature-Resistant Motor Housings, DC Motor Shells, Brushless and Stepper
12mm Rear Disc Hydraulic Brake Master Cylinder Caliper Compatible with 70cc 90cc 110cc 125cc 140cc 1
UTV SXS Center Mirror 2008-2022 Polaris RZR for Kawasaki, Arctic Cat Wildcat
UTV SXS Center Mirror 2008-2022 Polaris RZR for Kawasaki, Arctic Cat Wildcat
XXB ATV Battery Silicone YTX4L-BS for E-Ton AXL, TXL, NXL, RXL 50 and 90cc 1999-2003
XXB ATV Battery Silicone YTX4L-BS for E-Ton AXL, TXL, NXL, RXL 50 and 90cc 1999-2003

Latest Products from this Supplier

Pulse Coil Sensor for KTM EXC-F 250 SIX DAYS EXC-G 250 RACING SX-F 250 MUSQUIN EDITION SXS-F XC XC-F XC-W 250 TPI
Oil Filter for KTM 450 350 250 SX-F EXC-F XC-F 530 400 XC-W EXC-R EXC HUSQVARNA FX450 FX350
Fuel Oil Filter for KTM 690 390 200 125 640 620 400 DUKE R 525 450 250 650 LC4 EXC-G EXC 625 660 EXE SMC
Clutch Friction Plate for KTM 690 SM SMR 690SM SMC SM-LE Limited Edition Enduro Dake
43*53*9.5/11 Front Fork Damper Oil Dust Seal for KTM 105SX 105XC 85SX 85XC 125EXC 125MXC 250EXC
Paper Based Friction and Steel Clutch Plates for KTM 560 SMR 400 EXC-G XC-W 450 EXC SX XC 525
Motorcycle Engine Parts STD 58mm Cylinder Bore Size Piston Ring Kit for KTM 150 SX XC-W 2016 2017 2018 2019 2020 2021 2022
Motorcycle Engine Parts STD 54mm Cylinder Bore Size Piston Ring Kit for KTM 125 SX EXC XC-W
Motorcycle Parts Front Sprocket for KTM 73301 SX 125 150 200 250 300 360 380 400 440 450 500 520 525 SX-F 350
Motorcycle Parts Paper Based Friction and Steel Clutch Plates for KTM 250 350 450 500 SX-F XCF XC-F XCW EXC HUSABERG FE350 FE501
Aluminium Motorcycle Parts Rear Sprocket for KTM 60 SX 65 XC GAS GAS MC65 46010051046 TC65
Stator coil 6E0-85520-70 for Yamaha 3HP3 3HP3A 3HP 3A 4HP 4/4A/4C 5HP 5HP 5/5C/5CS

Supply voltage：AC 220V+ 10% 50HZ

Source pressure：0.45-0.7Mpa

Rated power：2.5KW

Rated speed：2000-4500rpm

Counting accuracy：+0.01/circle

Line type precision：0.01mm

Angular accuracy：0.1°

Optimum winding diameter：Φ0.04-Φ0.60mm

Overall dimension：1400x700x1800mm

Machine weight：300KG


Scope of application:

Φ15 to Φ42mm heat dissipation fan core high quality winding.


Efficiency reference:

Take Φ18mm iron core, 0.25mm wire diameter, 98T per pole as an examole, about 280PCS/h.
