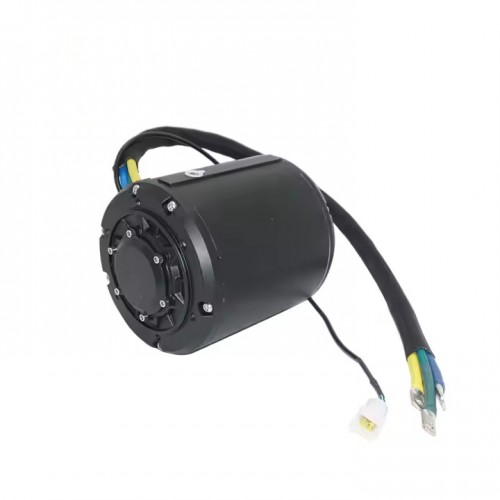

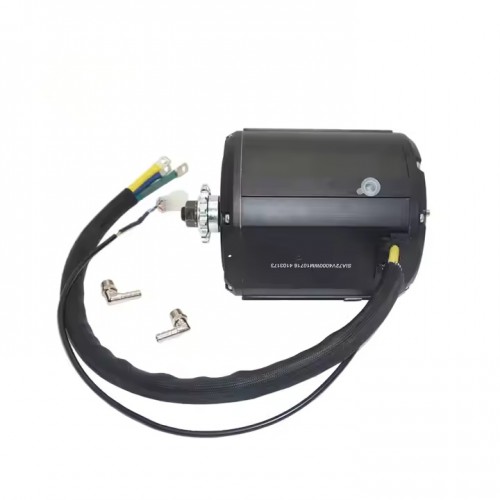

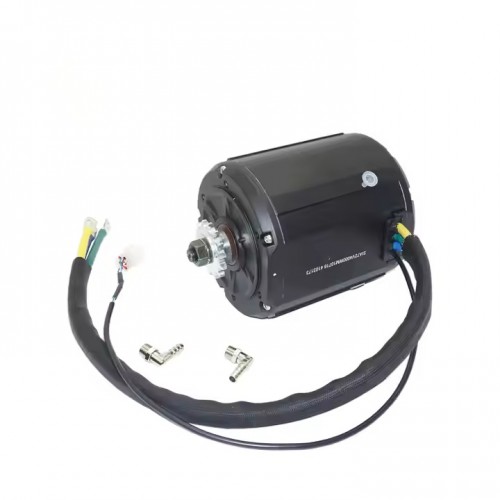

Motor Type: QS138 90H 4KW V1 Water Cooled Intermediate Drive Motor
Motor Design: PMSM
Matching Tires: 14 - 19 inch
Magnet Height: 90 hrs
Rated Power: 7500W
Peak Power: 13500W
Rated Voltage: 48v - 96v
Speed: 4000 rpm @ 72V, 6500 rpm after flux reduction
Max Torque: 72N.m
Cooling Method. : Water-cooled
Maximum efficiency: 93%
Thermal probe: KTY83 - 122
Operating temperature: 70 - 120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 20 mm² cross-section of phase wires (excluding insulation)
Waterproof rating: IP67
Color: black
N.W./G.W.: 13 kg/14 kg
Packaging Dimensions: 34cm * 33cm
QS138 90H 7500W 72V 100KPH IPM PMSM New Liquid Cooled 100kph Impeller Motor
US$ 281.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v - 96v
Rated Power:
7500W
Peak Power:
13500W
About this item
- Model: QS138 90H 4KW V1 Rated Voltage: 48v - 96v Rated Power: 7500W
- Type: Center Drive Motor
- Water cooler for better temperature resistance, high efficiency when climbing hills, better acceleration, lighter weight and smaller size compared to hub motors
- For electric motorcycle
- One year warranty
