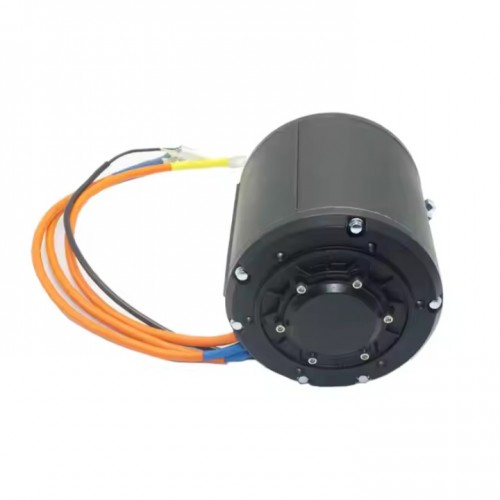

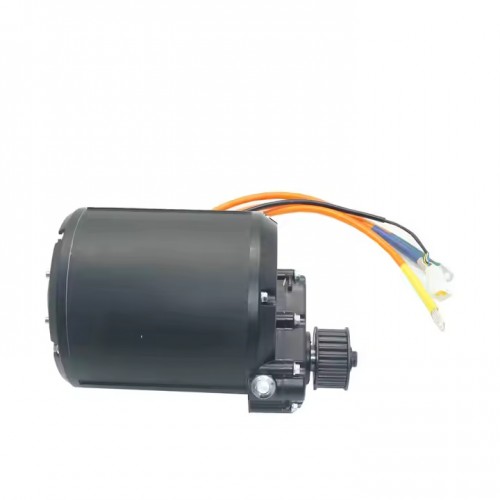

Motor Type: QS138 90H 4KW V3 water-cooled intermediate drive motor
Motor Design: PMSM
Matching Tires: 12 - 19 inches
Magnet Height: 90 hrs
Rated Power: 4000W
Peak Power: 13.5 kW
Rated Voltage: 48v - 96v
Speed: 4100 rpm @ 72V, 7000 rpm with flux reduction
Maximum Torque: 120 Newton-meters
Cooling Method: Water-cooled
Maximum efficiency: 93%
Thermal probe: KTY83 - 122
Operating temperature: 70 - 120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 20 mm² cross-section of phase wires (excluding insulation)
Waterproofing: IP67
Color: black
N.W./G.W.: 15.6 kg/16 kg
Packing size: 34 cm * 33 cm
4000 Watt Motor Qs138 90H V3 High Speed 120kph Water Cooled Brushless Permanent Magnet
US$ 310.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v - 96v
Rated Power:
4000W
Peak Power:
13.5KW
About this item
- Model: QS138 90H 4KW V3 Rated voltage: 48v - 96v Rated power: 4000W
- Type: Center Drive Motor
- High efficiency and better acceleration when climbing hills, light weight and small size compared to hub motors
- For electric motorcycle
- One year warranty
