Motor Type: QS165 50H 10KW Intermediate Drive Motor
Motor Design: PMSM
Sensor: Hall/enorder selectable
Magnet Height: 50 hours
Rated Power: 10000W
Peak Power: 20000W
Rated Voltage: 48v - 96v
Speed: Rated 6200rpm, Peak 10000W
Maximum Torque: 73N.m
Maximum Efficiency. 93%
Thermal probe: KTY83 - 122
Operating temperature: 70 - 120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 30 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Color: Black
N.W./G.W.: 11.5 kg/12.5 kg
Packaging Size: 34cm * 33cm

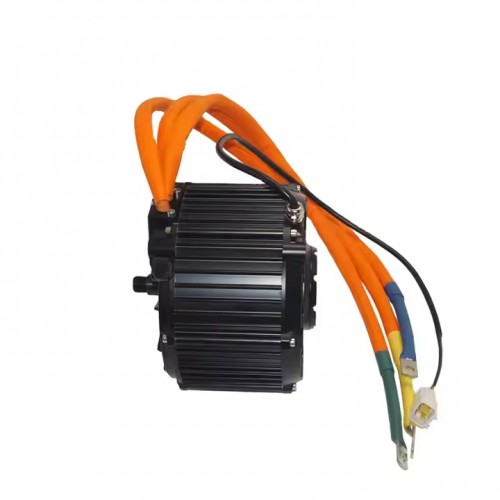

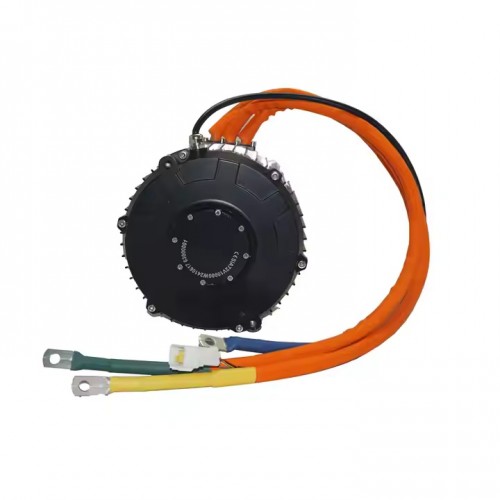

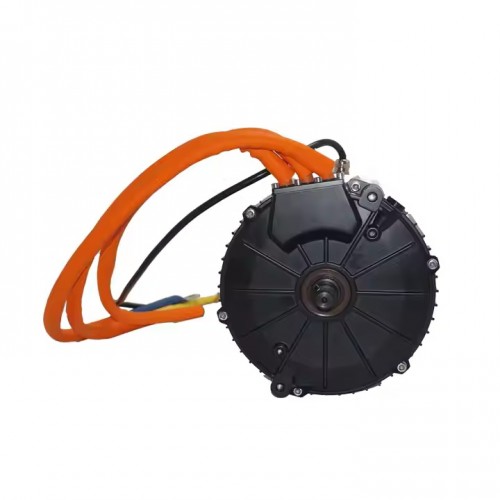

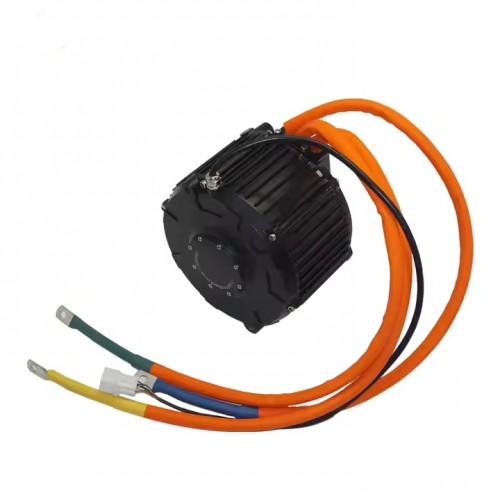

High Speed QS165 50H 10000W Electric Bicycle Center Drive Motor
US$ 259.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v - 96v
Rated Power:
10000W
Peak Power:
20000W
About this item
- Model: QS165 50H 10KW Rated voltage: 48v - 96v Rated power: 10000W
- Type: Center Drive Motor
- High efficiency and better acceleration when climbing hills, light weight and small size compared to hub motors
- For e-bikes, can fit Surron bikes
- One year warranty
