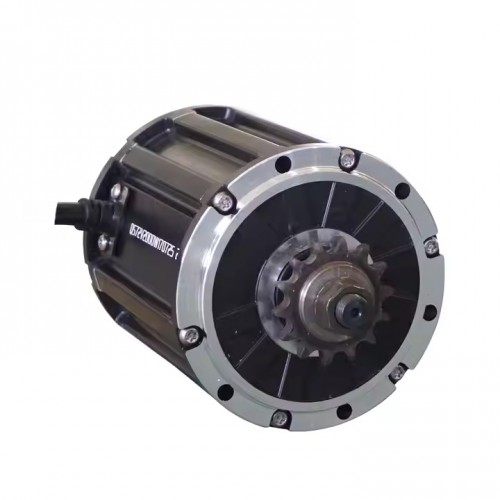

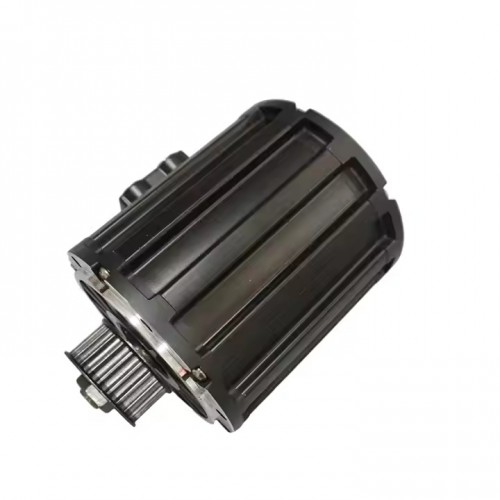

Motor type. QS120 70H 2KW V1 Mid Drive Motor
Motor Design. PMSM
Sensor. Encorder
Magnet Height: 70H
Rated power: 2000W
Rated voltage: 48v-72v
Speed: 2800RPM without Flue weakening, 4400RPM with flux weakening
Max torque. Approx 45.4N.m without Reduction ratio, approx 216.7N.m with 1:4.77 Reduction ratio
Max DC Current: 60A
Max Phase Current: 250A
Max efficiency: 93%
Thermic probe. KTY83-122
Working temperature: 70-120℃, peak 150℃
Hall sensor. 1 set
Phase cable. 8mm² Cross Section of Phase Wire (not include insulation layer)
Waterproof grade: IP67
Color: Black
N.W./G.W.: 10.8kgs/11.5kgs
Packing dimension: 34cm*34cm*33cm
70km/h electric scooter with 2000w pmsm motor qs 120 motor
US$ 160.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v-72v
Rated Power:
2000W
Max DC Current:
60A
About this item
- Model: QS120 70H 2KW V1 Rated voltage: 48v-72v Rated power: 2000W
- Type: Mid Drive Motor
- High efficiency and better acceleration when climbing hills, light weight and small size compared to hub motors
- For electric scooter, electric motorcycle
- One year warranty
