Motor Type: QS165 50H 10KW Intermediate Drive Motor
Motor Design: PMSM
Sensor: Hall/enorder selectable
Magnet Height: 50 hours
Rated Power: 10000W
Peak Power: 20000W
Rated Voltage: 48v-96v
Speed: Rated 6200rpm, Peak 10000W
Max Torque: 73N.m
Max Efficiency. 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 30 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Colour: black
N.W./G.W.: 11.5 kg/12.5 kg
Packing size: 34 cm * 33 cm

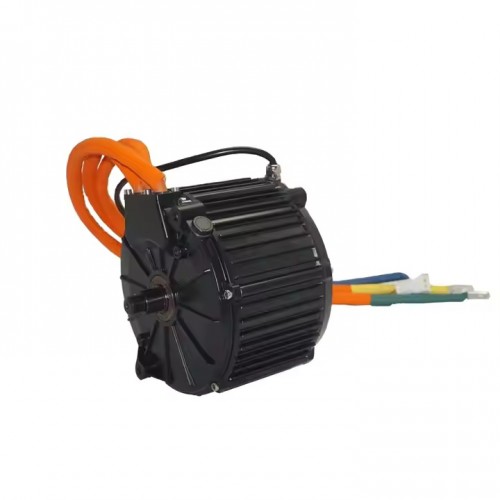

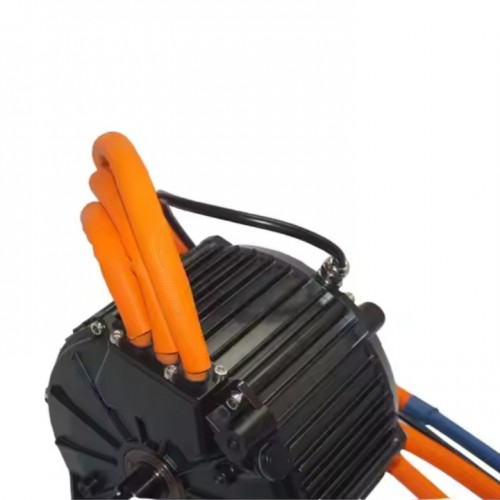

QS165 50h 10000W High-speed center drive motor for electric motorcycle
US$ 259.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v - 96v
Rated Power:
10000W
Peak Power:
20000W
About this item
- Model: QS165 50H 10KW Rated voltage: 48v-96v Rated power: 10000W
- Type: center drive motor
- High efficiency and better acceleration when climbing hills, light weight and small size compared to hub motors
- Used for e-bikes, can fit Surron bikes
- One year warranty
