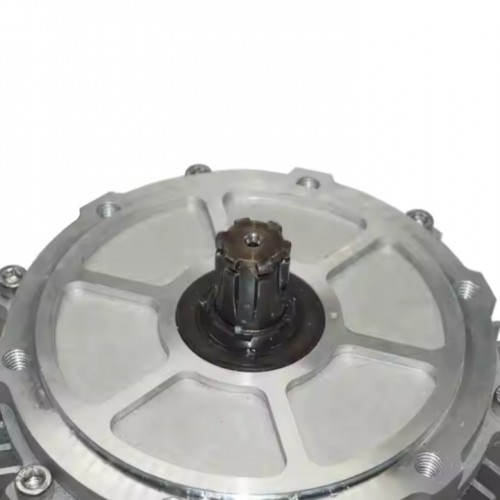

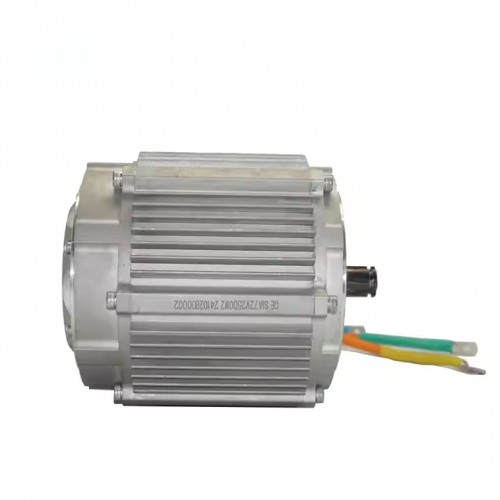

Motor Type: SIA138 60H 2500W Mid Drive Motor
Motor Design: PMSM
Matching Tires: 12-19 inch
Magnet Height: 60 hours
Rated Power: 2500W
Peak Power: 6500W
Rated Voltage: 48v-72v, 72v by default
Speed: 3000 rpm @ 72V, 4500 rpm after weak magnet
Max Torque: 60N.m
Cooling method: air-cooled
Maximum efficiency: >91%
Thermal probe: KTY83-122/KTY84-150
Operating temperature: 70-120 °C, peak 150 °C
Hall sensor: 1 set
Phase cable: 16 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Colour: Silver
N.W./G.W.: 11kg/ 12.79 kg
Package size: 34 cm * 33 cm
SiA138 60H 2500W Mid Drive Motor DIY Electric Bike Upgrade 2500W Motorcycle Motor
US$ 179.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v-72v
Rated Power:
2500W
Peak Power:
6500W
About this item
- Model: SIA138 60H 2500W Rated voltage: 48v-72v Rated power: 2500W
- Type: Mid-drive motor
- High efficiency and better acceleration when climbing hills, lighter weight and smaller size compared to hub motors
- For electric bicycles
- One year warranty
